[Fire Fighting Vehicle] Hailifeng Heavy Truck HOWO 8-square Foam Fire Fighting Vehicle Is The Main F

When Large Factory Areas, Warehousing And Logistics Parks, And Other Scenes Ignite Raging Fires

We Need A Fire Truck That Can Provide Continuous Fire Extinguishing Medium, Has Super Strong Spraying Ability, And Adapts To Heavy Load Conditions To Lead The Rescue

Kailifeng Heavy Truck HOWO 8t Foam Fire Truck Has Become The "core Force" Of Large-scale Industrial Fire Scene With Its Super Liquid Carrying Capacity, Strong Pumping Force And Ultra Long Range

Provide Critical Support For Large-scale Firefighting Operations With Hardcore Configuration And Reliable Performance

Continuous Firefighting And Strong Assistance

To Deal With Large-scale Industrial Fires, "continuous Output" Is The Core Of Controlling The Fire. The Total Liquid Carrying Capacity Of This Kailifeng Heavy Truck HOWO Foam Fire Truck Exceeds 8 M3 (water 6100L+foam 2050L), And 6100L Water Can Meet The Demand For Long-term High Intensity Spraying, Providing Sufficient "ammunition" For Cooling Large Devices Or Suppressing Large-scale Fires; 2050L Foam Liquid Can Be Adjusted By 3%~6% Mixing Ratio To Form A Covering Of About 4000 ㎡, Which Can Effectively Deal With Fires Caused By Oil Leakage Or Chemical Raw Materials.

The Water Tank Is Made Of High-quality Carbon Steel Plate With 4mm Bottom Plate, 3mm Side Plate And Sealing Plate. The Internal Anti-corrosion Treatment Ensures Long-term Clean Water Storage And Is Suitable For The Complex Water Quality Of Industrial Water Sources; The Foam Tank Is Made Of 304 Stainless Steel With 4mm Bottom Plate, 3mm Side Plate And Sealing Plate, And Its Corrosion Resistance Is Far Superior To Ordinary Steel, Ensuring That Foam Liquid Will Not Deteriorate During Long-term Storage. The CB10/60 Atmospheric Pressure Fire Pump, Which Is The Core Of Fire Extinguishing, Has A Rated Flow Rate Of 60L/s @ 1.0MPa And Can Output 3.6 Tons Of Fire Extinguishing Medium Per Minute. With A Water Intake Time Of ≤ 50s, It Can Quickly Establish A Water Supply Chain Even When Taking Water From Fixed Fire Hydrants Or Emergency Water Tanks In Industrial Plants.

The PL8/48 Fire Monitor Gives Full Play To Its Range Advantage: Water Range ≥ 70m, Foam Range ≥ 60m, 70m Is Equivalent To The Height Of 23 Floors, Which Can Easily Cover The Top Of High-altitude Equipment Or Storage Shelves In Large Plants; The 360 ° Horizontal, -35 °~70 ° Pitching Rotation Angle, Together With The PH64 Ring Pump Foam Proportioner, Can Be Efficiently Completed Both In Terms Of Water Cooling In A Large Range And In Terms Of Precision Foam Suffocation Extinguishing, Providing Strong Support For The "cutting And Encirclement" Strategy Of Industrial Fires.

Rapid Response Under Overload

To Carry 8.15 Cubic Meters Of Liquid And Quickly Reach Large Industrial Sites, Strong Power And Stable Chassis Are Key. The Car Is Equipped With A HOWO National VI Chassis, A 4 × 2 Drive Type With A 4700mm Wheelbase, Which Ensures The Stability Of Heavy Loads While Also Considering The Flexibility Of Road Traffic In The Factory Area. The Engine Has A Rated Power Of 257KW (approximately 350 Horsepower) And A Maximum Speed Of 101km/h. Even When Fully Loaded, It Can Quickly Respond To Emergencies, Ensuring Faster Arrival From The Fire Station To The Disaster Area Than Vehicles Of The Same Class.

The Cab Adopts A Flat Head Four Door Double Row Structure, With A Layout Of 2 People In The Front Row (including The Driver) And 4 People In The Back Row, Which Is Just Enough To Meet The Synchronous Deployment Of A 6-person Assault Team. The Back Row Can Be Equipped With 4 Air Breathing Apparatus Brackets, Allowing Rescue Personnel's Protective Equipment To Be On Standby. The 100W Alarm And Power Take-off Control Switch Are Centrally Arranged Within Easy Reach Of The Driving Area. The Sandwich Type Full Power Take-off Is Electrically Controlled By An Electromagnetic Valve And Combined With A Forced Adjustable Water Cooling System. It Can Stably Output Power Even During Continuous High-intensity Operations, Ensuring That The Fire Pump Is Continuously Switched On.

Scientific Layout Improves Fire Extinguishing Efficiency

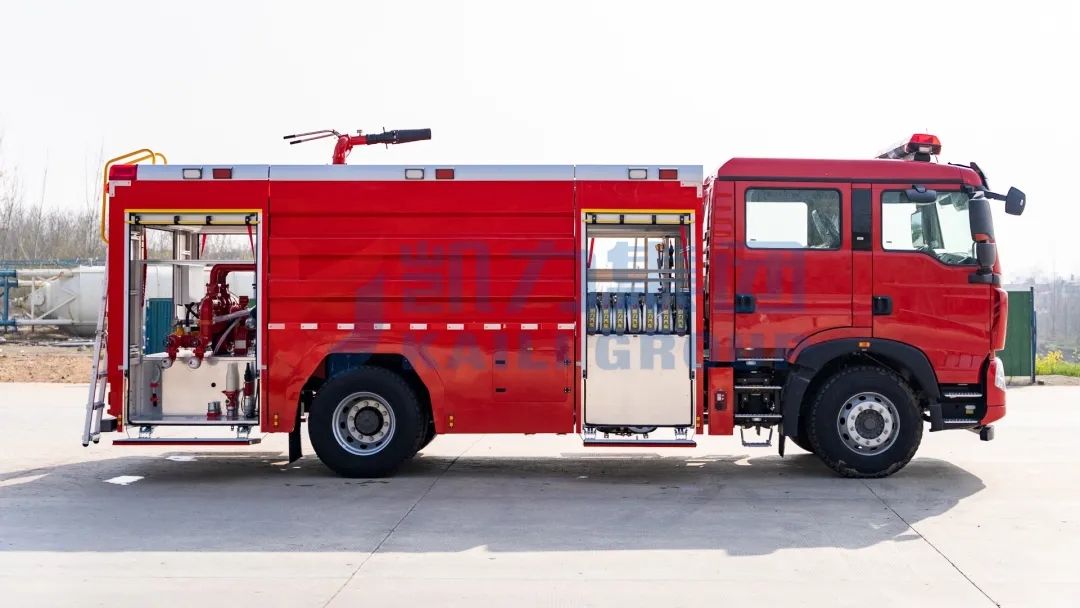

In Large-scale Industrial Fire Rescue, The Convenience Of Equipment Access Directly Affects The Speed Of Combat Deployment. The Vehicle Equipment Box Adopts A High-strength Aluminum Alloy Profile Skeleton+aluminum Oxide Alloy Flat Plate Structure. The All Aluminum Alloy Frame Welding Is Not Only Lighter Than The Traditional Steel Skeleton, But Also Has Stronger Corrosion Resistance, Suitable For The Acidic And Alkaline Environment That May Exist In Industrial Sites. There Is One Aluminum Alloy Rolling Shutter Door On Each Side Of The Front Equipment Box And The Rear Pump Room, Which Is Lightweight, Reliable, And Has Low Noise. It Is Equipped With Anti Slip Flip Pedals, And Firefighters Can Easily Access And Place Large Equipment Such As Suction Pipes And Water Hoses From The Ground.

The Equipment Layout Strictly Follows The "actual Combat Logic": Design And Integrate According To The Combat Formation, And Place High-frequency Equipment Such As Water Separator And Foam Gun On The Outermost Side; Design The Bracket According To Ergonomics To Ensure That Any Equipment Can Be Accessed Within 2 Movements While Standing On The Ground Or Pedals; Arrange According To The Frequency Of Use, So That Dismantling Tools And Firefighting Equipment Are Placed In Their Respective Positions. This Scientific Layout Allows Equipment To Be Accessed In A Shorter Time Than Traditional Methods, Allowing Firefighters To Devote More Energy To Firefighting Efforts.

From Continuous Guarantee Of Liquid Loading Capacity, To Strong Output Of Pump Force And Range, To Efficient Response Of All Aluminum Structure And Scientific Layout

Each Configuration Of This Hailifeng Heavy Truck HOWO Foam Fire Truck Precisely Matches The Rescue Needs Of Large-scale Industrial Fires

It Is Not Only A Fire-fighting Equipment, But Also A Key Link In The Industrial Safety Defense Line

Guarding The Production Safety Of The Factory Area And The Life And Property Safety Of Surrounding Residents With Reliable Performance
