[Fire Fighting Vehicle] The 18 Square Foam Fire Fighting Vehicle Of The Rear Double Bridge Of Hailif

When Dealing With Large-scale Fires In Chemical Industrial Parks, Storage And Logistics Bases, And Other Places, There Are Extremely High Requirements For The Continuous Firefighting Ability, Coverage, And Maneuverability Of Fire Trucks

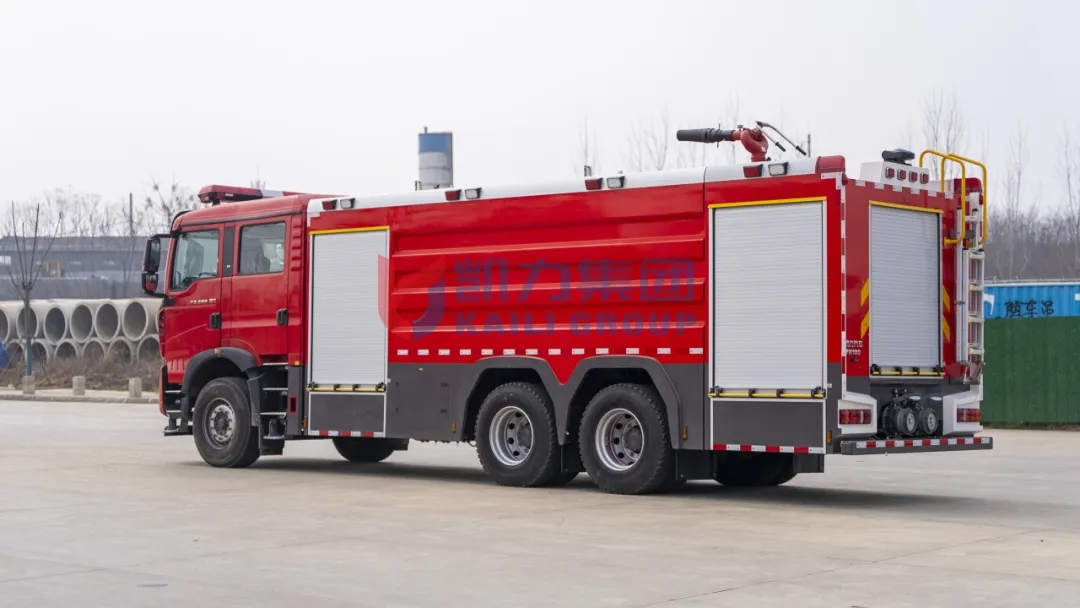

Kelifeng HOWO Rear Double Bridge Foam Fire Truck Has Become The Core Force In The Super Large Fire Rescue With A Super Large Liquid Carrying Capacity Of 18 Square Meters, A Powerful Pumping Force Of 80L/s And A Super Long Range Of 75 Meters

Providing Solid Support For Large-scale Firefighting Operations With Professional Configuration And Excellent Performance

Next, Let's Unveil Its Mysterious Veil Together And Explore The Core Strength Of This Rescue Weapon!

Extra Large Capacity+powerful Output

In The Face Of A Super Large Fire, Sufficient Extinguishing Media And Strong Output Capability Are The Key To Controlling The Fire. This HOWO Foam Fire Truck Has A Liquid Volume Of 18 M3 (14.7 M3 Of Water+3.3 M3 Of Foam), Which Can Provide Sufficient "ammunition" For Long-term High-intensity Fire Fighting.

The Water Tank Is Made Of High-quality Carbon Steel Plate, With A Bottom Plate Thickness Of 5mm And Side And Sealing Plates Of 4mm. It Is Equipped With Internal Anti-corrosion Treatment To Ensure Clean Water Quality And Durable Tank Body; The Foam Tank Is Made Of High-quality Stainless Steel Plate, And Also Adopts 5mm Bottom Plate, 4mm Side Plate And Sealing Plate. The 3300L Capacity Can Meet The Demand For Foam Coverage Of Large-scale Oil Fires.

The CB10/80 Atmospheric Pressure Fire Pump, Which Is The Core Of The Fire Extinguishing System, Has A Rated Flow Rate Of 80L/s @ 1.0MPa, Which Means It Can Output 4.8 Tons Of Fire Extinguishing Medium Per Minute, Providing Strong Power For Quickly Suppressing The Fire. Its Maximum Suction Depth Is 7m, And The Water Intake Time Is ≤ 80s, Which Can Adapt To Complex Water Source Environments.

The Matched PL8/64 Dual-use Fire Monitor Has A Water Range Of ≥ 75m And A Foam Range Of ≥ 70m. The 75m Range Can Cover 25 Floors, Which Can Easily Deal With High-altitude Fire In Large Buildings; The 360 ° Horizontal, -35 °~70 ° Pitching Rotation Angle, Together With The PH64 Ring Pump Foam Proportioner, Can Efficiently Complete The Task Whether It Is Large Area Of Water Cooling Or Precise Foam Blocking Oxygen.

Powerful Chassis+flexible Handling

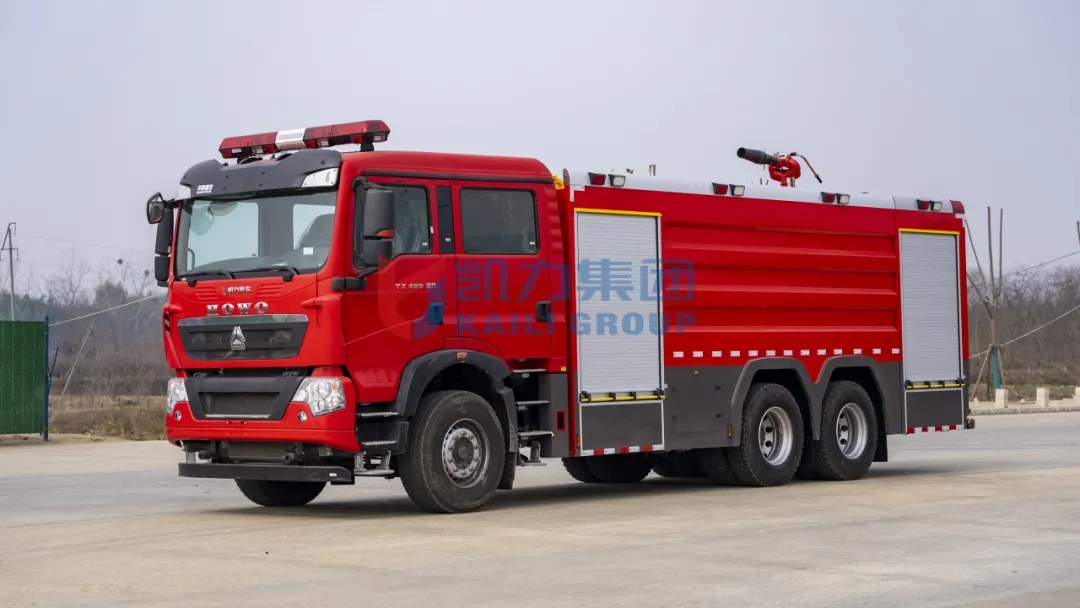

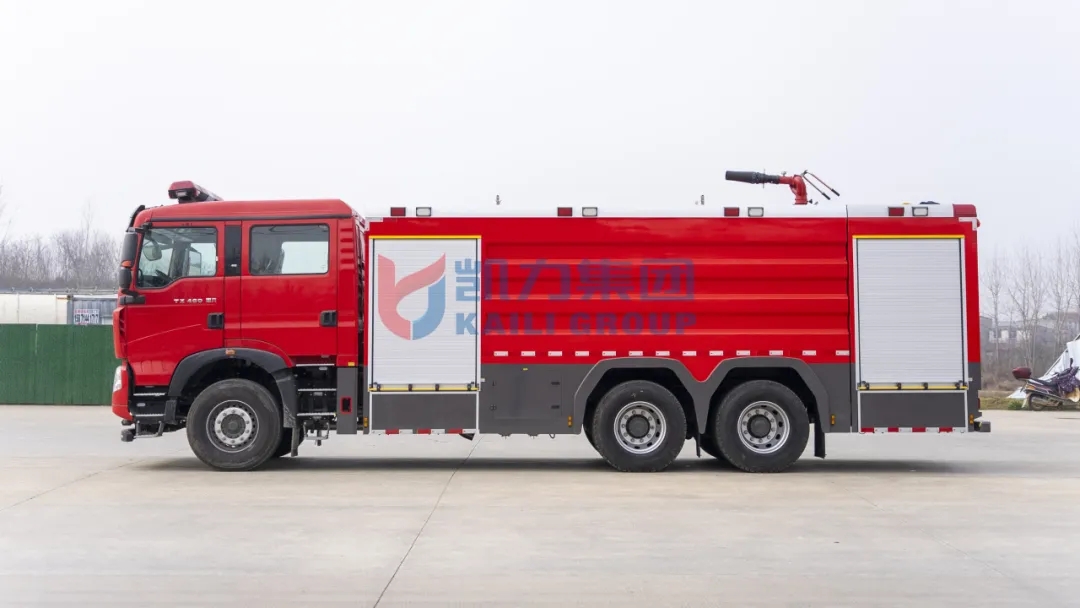

Carrying 18 Cubic Meters Of Liquid And Quickly Arriving At The Site Requires Strong Power Support And Flexible Handling Performance. The Vehicle Is Equipped With A Heavy-duty Chassis Of The Volvo National VI, Using A 6 × 4 Drive Type And A Wheelbase Design Of 4600mm+1400mm To Ensure Driving Stability Under Heavy Loads.

The Rated Power Of The Engine Is 341KW, And The Maximum Speed Can Reach 101km/h. Even When Fully Loaded, It Can Quickly Respond To Rescue Commands, Achieving The Goal Of "responding To Alarms Immediately And Arriving At The Scene Quickly".

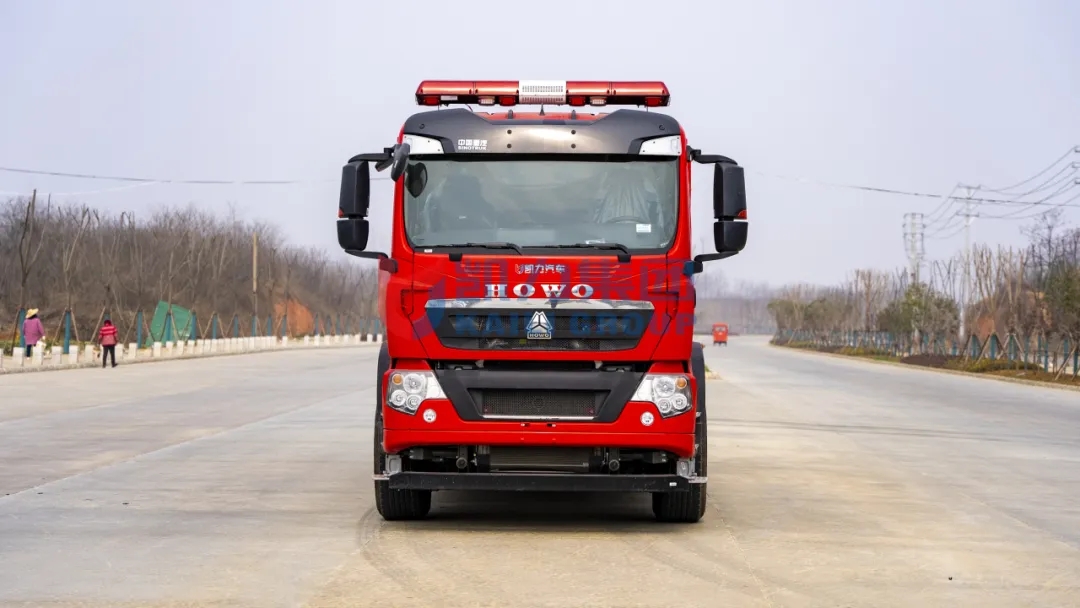

The Cab Is A Flat Bottomed Four Door Double Row Structure, With A Layout Of 2 People In The Front Row And 4 People In The Back Row, Meeting The Synchronous Deployment Of 6 Combat Groups. The Back Row Can Be Equipped With 4 Air Breathing Apparatus Brackets, Allowing Rescue Personnel To Be Fully Equipped And On Standby At Any Time.

100W Alarm, Power Take-off Control Switch And Other Equipment Are Centrally Arranged In The Driving Area For Easy Operation; The Sandwich Type Full Power Take-off Is Controlled By An Electromagnetic Valve, Combined With Forced Adjustable Water-cooled Cooling And Splash Oil Lubrication, Which Can Stably Output Power And Ensure The Continuous Operation Of The Fire Pump. The Electrical System Is Well-equipped With 1.9-meter-long LED Warning Lights, 360 Degree Remote-controlled Rotating Searchlights, And Multiple Sets Of Flashing Lights And Side Lighting, Ensuring Safe Operations And Clear Visibility In Complex Environments.

Scientific Layout+practical Design

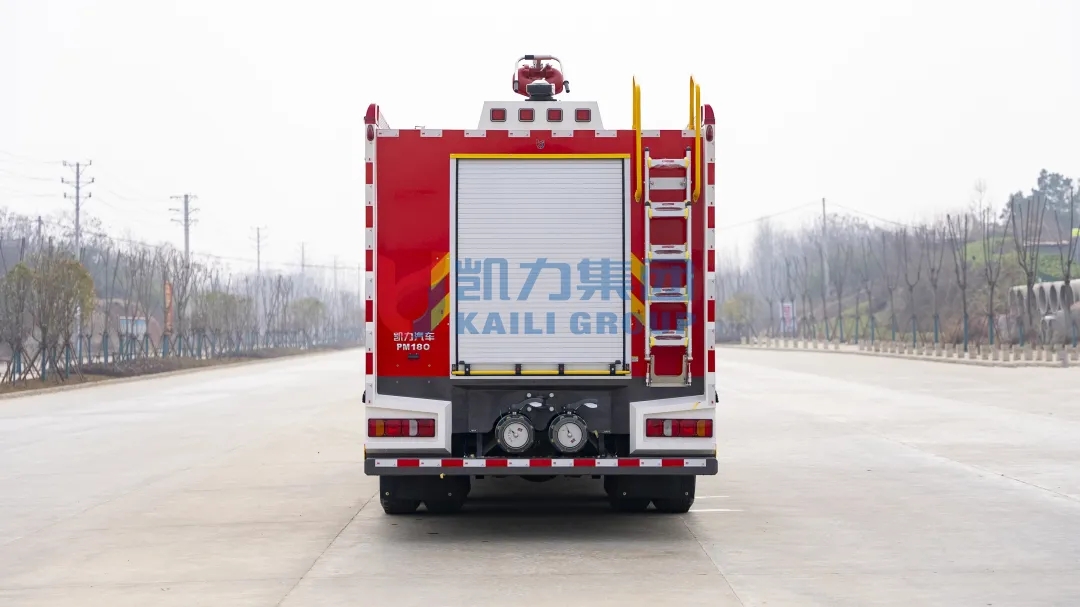

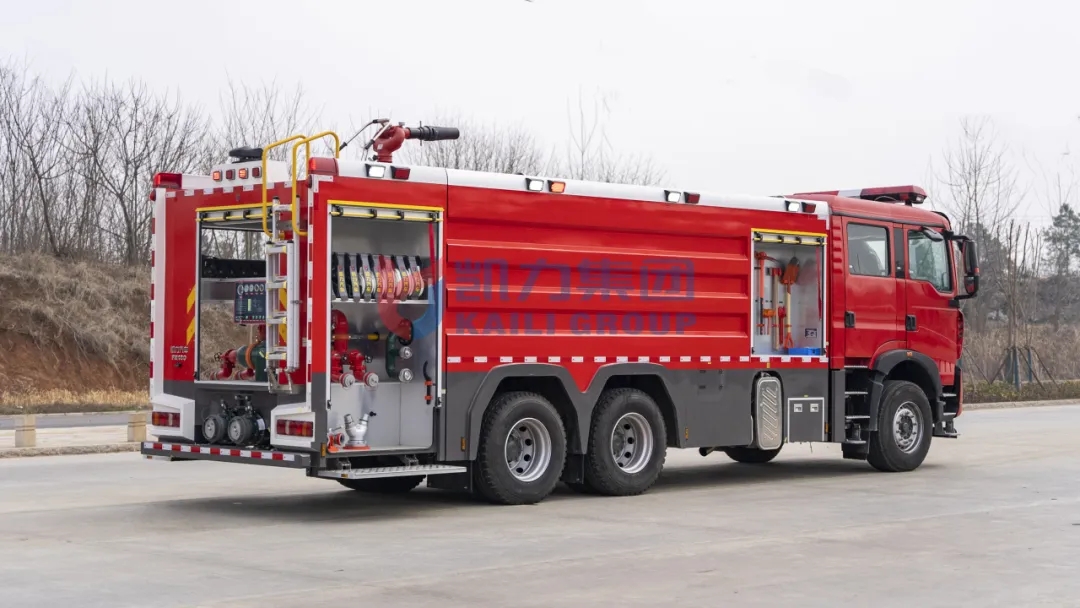

In The Tense Rescue Scene, The Efficiency Of Equipment Retrieval Directly Affects The Speed Of Combat Deployment. The Equipment Box Of The Vehicle Adopts A "high-quality Steel Frame+alumina Alloy Patterned Plate" Structure. There Is One Aluminum Alloy Rolling Shutter Door On Each Side Of The Front Equipment Box, And One On Each Side Of The Rear Pump Room. It Is Lightweight, Reliable, And Has Low Noise. The Anti Slip Flip Pedal Is Set Below For Quick Access To Equipment.

The Equipment Layout Follows The "practical Logic": Large Equipment Such As Suction Pipes And Hoses Are Placed In Convenient Locations And Can Be Accessed Within 2 Movements Of Standing On The Ground; High Frequency Equipment Such As Water Separator And Foam Gun Are Placed In Different Zones According To The Battle Formation, And The Access Speed Is Greatly Improved With The Ergonomic Bracket. The Pipeline System Is Connected To Various Components With Seamless Steel Pipes Through Flanges, And The Design Of The Tank Outlet Pipeline And External Inlet Pipeline Is Reasonable To Ensure "zero Obstruction" Of The Fire Extinguishing Medium Delivery.

The Sustained "combat Power" Provided By The 18 Sided Liquid Loading Capacity, The Powerful "strike Range" Formed By The 80L/s Pump Power And 75 Meter Range, Coupled With The Efficient "combat Rhythm" Brought By The Scientific Layout

Each Configuration Of Kailifeng Heavy Truck HOWO Rear Double Bridge Foam Fire Truck Precisely Points To The Core Needs Of Super Large Fire Rescue

It Is The Best Embodiment Of Kaili Automobile Group's Design Concept Guided By Practical Needs

It Is Also The Ultimate Barrier To Safeguard The Safety Of Large Venues!
