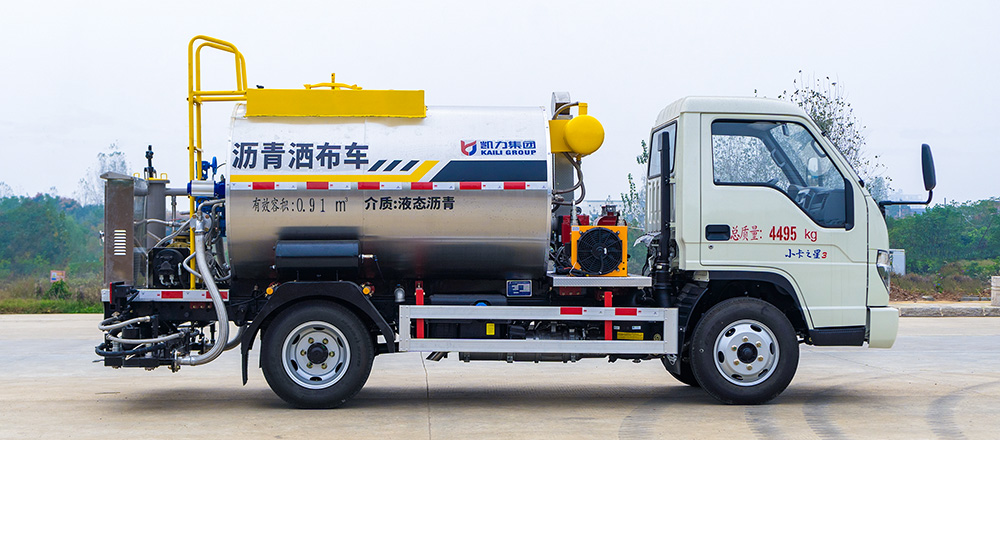

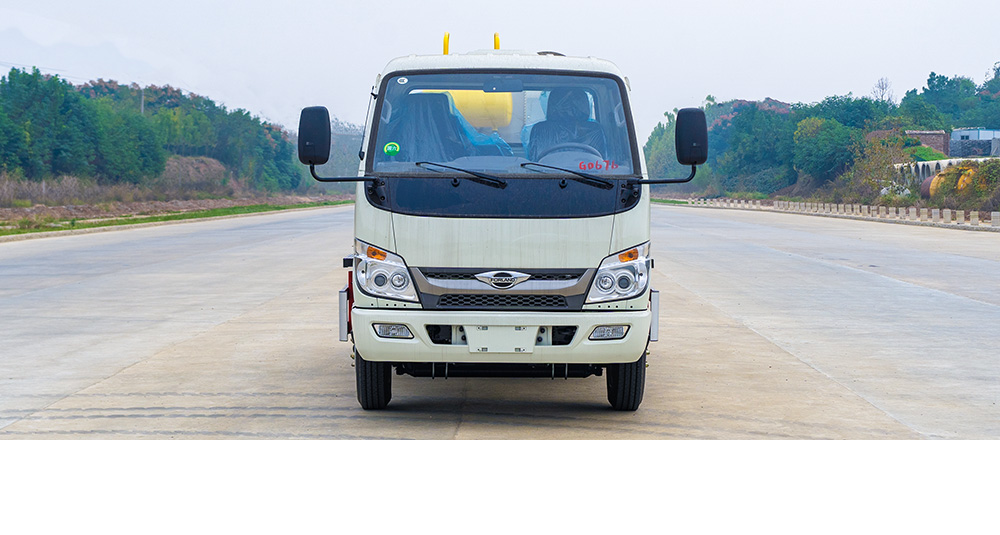

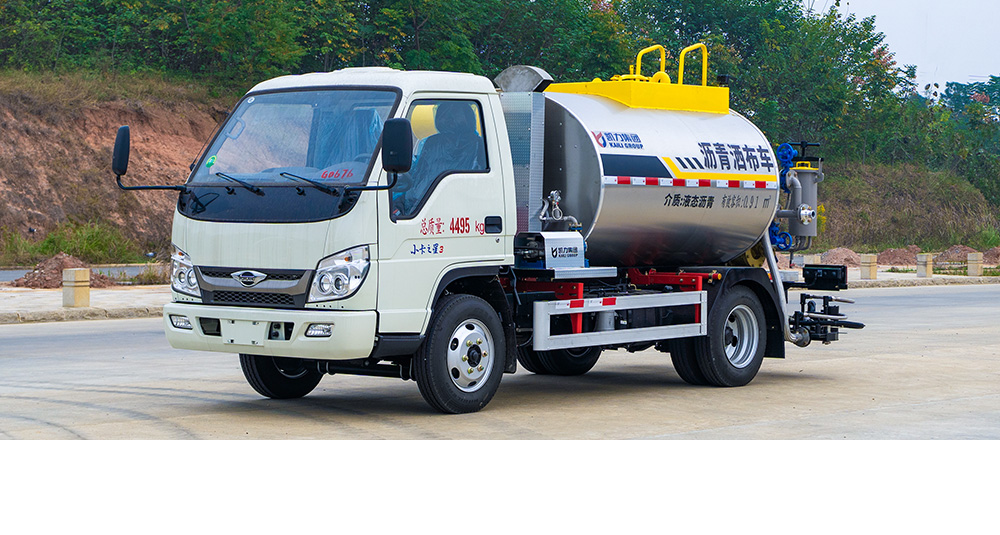

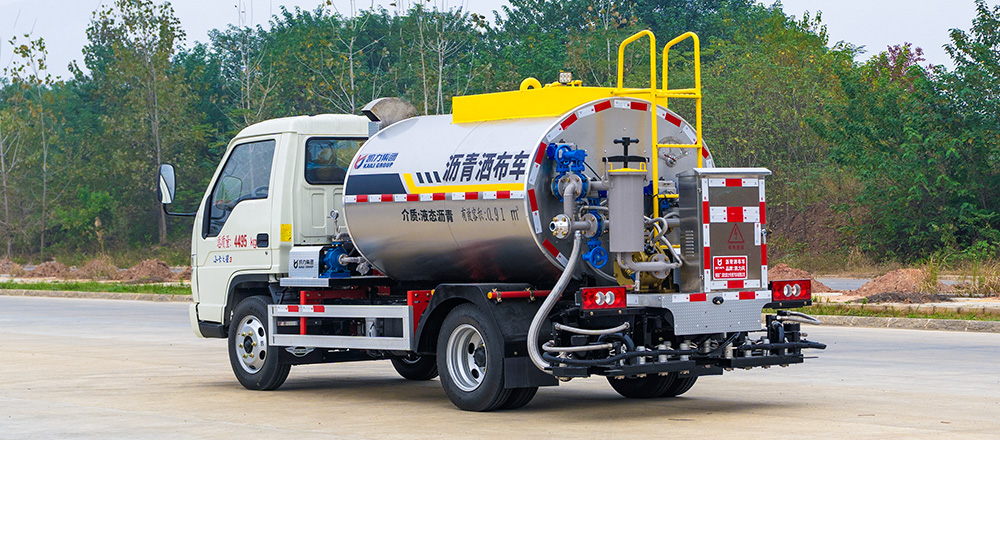

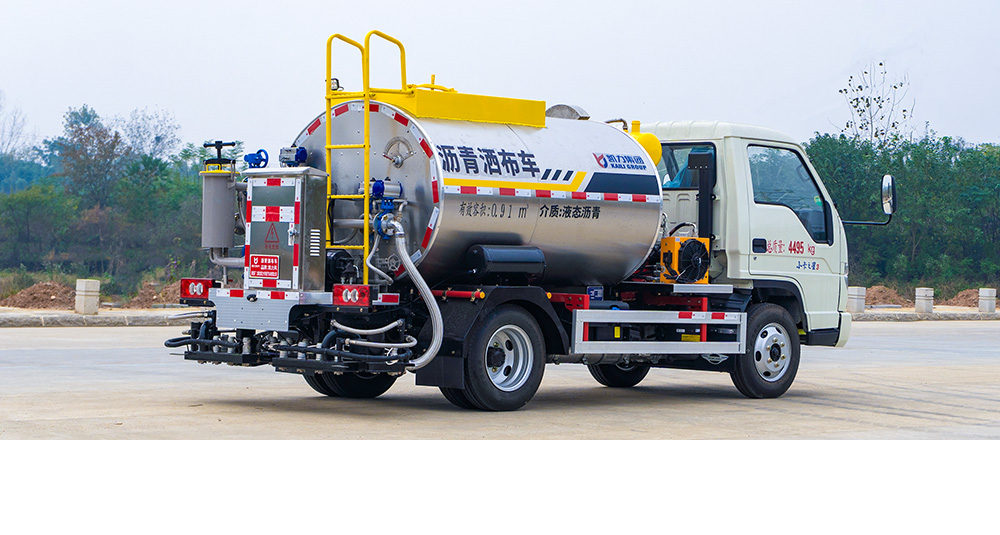

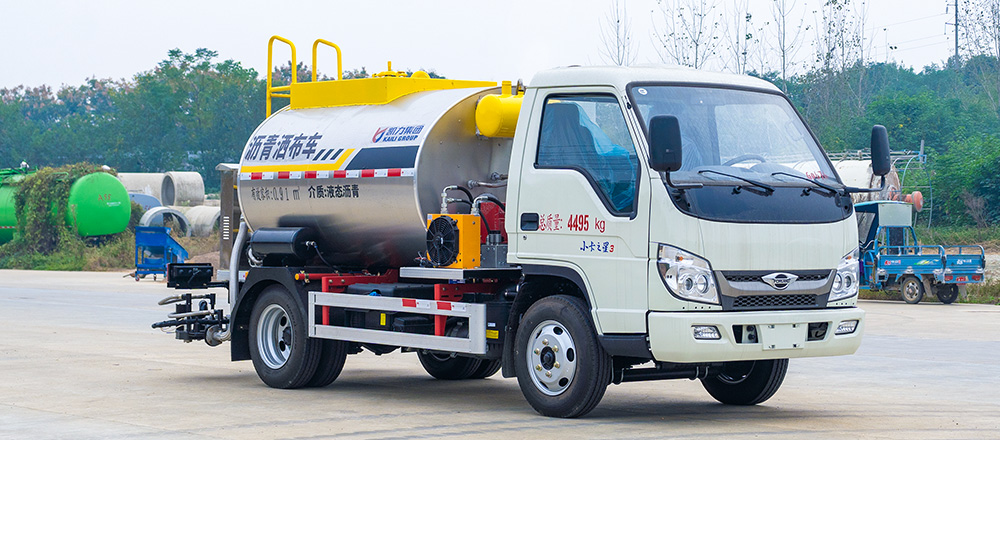

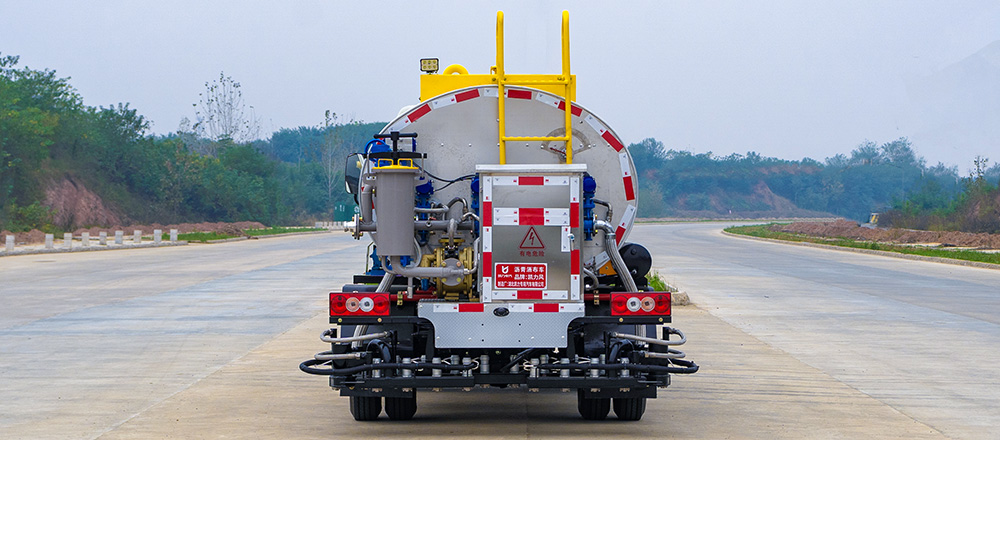

Futian Xiaoka Star 3 Asphalt Distributor Truck

Asphalt Distributor Truck Is A Semi Automated High-tech Product Specialized In Distributing Emulsified Asphalt, Diluted Asphalt, Hot Asphalt, High Viscosity Modified Asphalt, Etc. It Is Used For Spraying The Prime Coat, Waterproof Layer, And Bonding Layer Of The Bottom Layer Of Asphalt Pavement In The Construction Of High-grade Highways.

Product Highlights

Strong Adaptability To Road Operations

According To The Needs Of Spraying Volume And Job Width, The Computer Can Combine The Linear Nozzles In Any Form. Both Manual And Automatic Control Modes Can Achieve Individual Control Of Each Nozzle, Allowing For Arbitrary Adjustment Of The Spraying Width.
Intelligent Homework Reduces Costs And Increases Efficiency

The Automatic Control System Can Measure The Vehicle Speed And Automatically Calculate The Speed Of The Asphalt Pump Based On The Input Spraying Amount, Spraying Width, And Asphalt Type. The System Automatically Adjusts The Speed Of The Asphalt Pump.
Core Import Stable Operation

The Heating System Adopts Italian Imported Burners With Automatic Ignition And Temperature Control Functions. Vehicle Mounted Rapid Heating System (10-15 ° C/h) Can Improve Heating Efficiency And Reduce Construction Assistance Time, Ensuring Spraying Temperature.
Excellent Reliability In Structural Science

The Flushing Nozzle Function Can Blow Out The Remaining Asphalt From The Nozzle Through Diesel And High-pressure Air, Preventing The Asphalt From Freezing On The Nozzle And Greatly Improving Its Service Life.

Product specifications

Project	Futian Xiaoka Star 3 Asphalt Distributor Truck
Wheelbase (mm)	Two Thousand Eight Hundred And Fifty
Engine Model	Quanchai Q23-115C60
Engine Power (kw)	Eighty-five
Asphalt Tank Capacity (m ³)	Three
Asphalt Pump	QGB270
Asphalt Pump Flow Rate (L/H)	Two Hundred And Seventy
Number Of Tail Nozzles (pieces)	Twenty
Control Method	Manual/automatic, One Control One
Asphalt Spraying Amount (kg/㎡)	0.25-2.5
Spraying Width (m)	≤3.5
Burner	G10
