【 Hot Selling Recommendation 】 Ultra Long Range And Versatile Purification, Kaili Feng Xingchen Pure

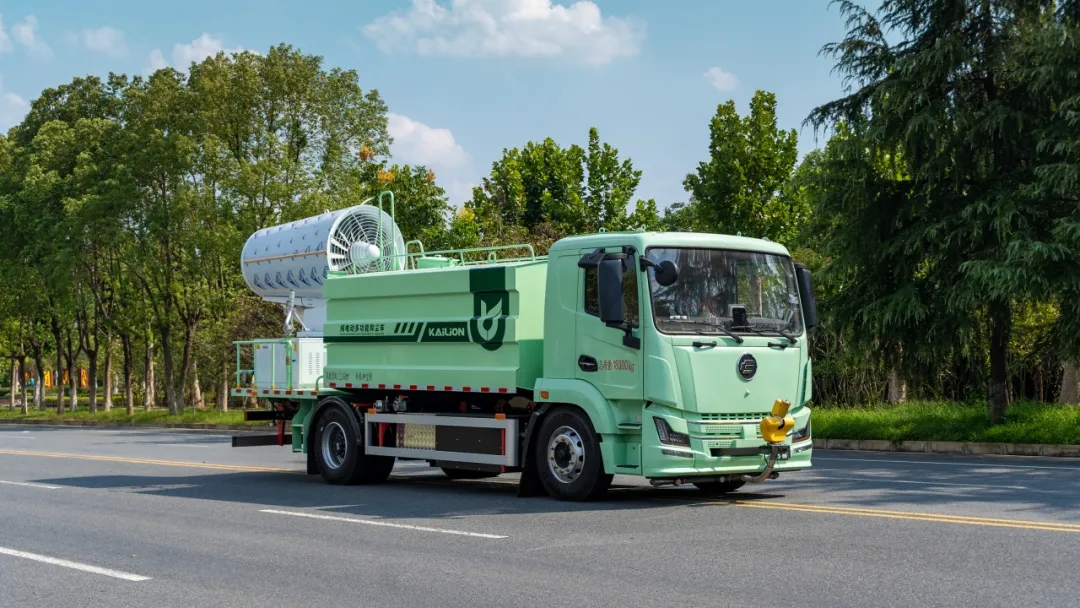

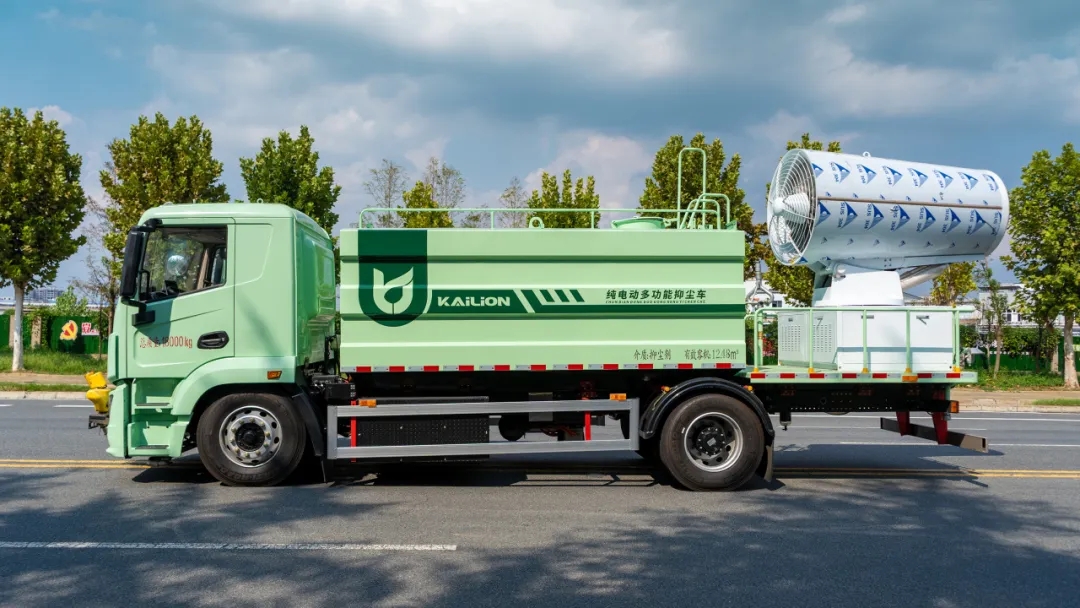

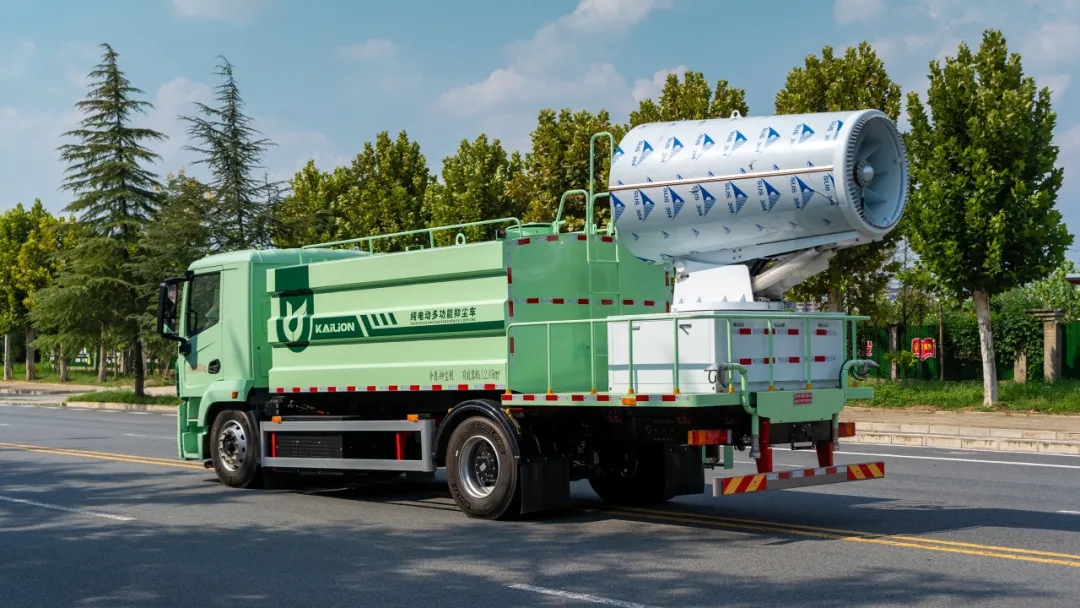

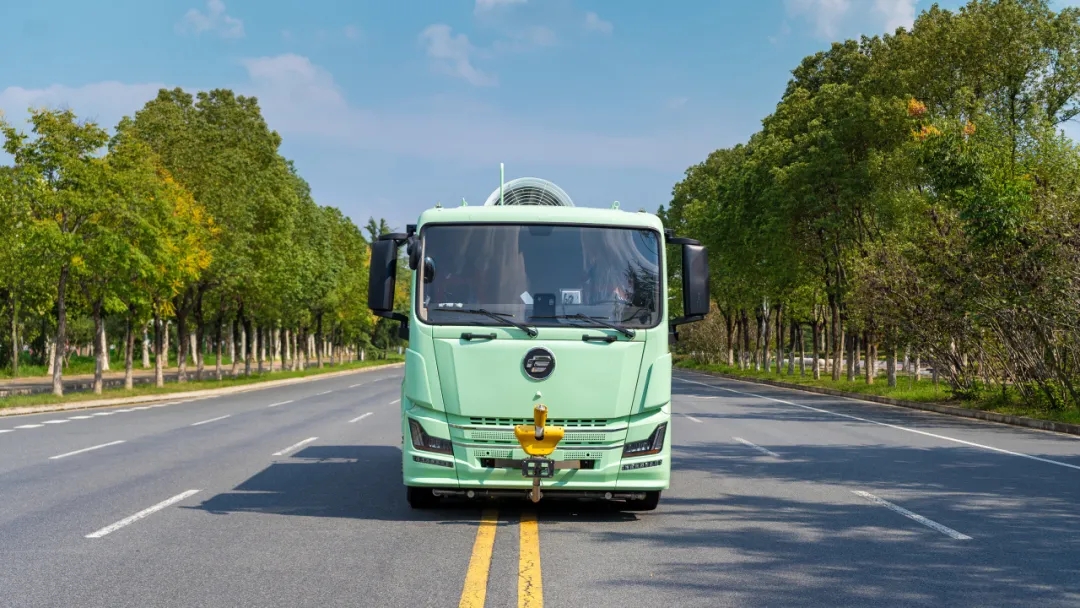

The KLF5185TDYBEV Pure Electric Multifunctional Dust Suppression Vehicle Is A Multifunctional Environmental Protection Operation Platform Built By The Kaili Automobile Group Based On A Mature Pure Electric Chassis. It Combines Multiple Functions Such As Dust Suppression, Watering, Flushing, Spraying, And Fire Protection, Providing Green And Efficient Solutions For Urban Dust Control, Road Maintenance, And Emergency Response With Its Significant Advantages Of Zero Emissions, Multi-purpose Use, And High Efficiency.

List Of Core Advantages

Why Did You Choose It?

Big Fog Gun: The Core Spray Has A Range Of ≥ 100 Meters, Wide Coverage And Extremely High Dust Suppression Efficiency.

Super Endurance: Pure Electric Drive, Equipped With 210.56kWh CATL Battery, Pollution-free Operation.

One Vehicle With Multiple Functions: Dust Suppression, Watering, Flushing, Greening, And Emergency Firefighting.

Efficient Operation: Front Flushing Width Of 18m, Rear Spraying Width Of 12m, Water Cannon Range Of 35m.

Intelligent And Convenient: The Cab Can Be Centrally Controlled By Pneumatic Control, With Simple Operation And Reduced Labor Intensity.

01. Powerful Pure Electric ChassisBalancing Power And Environmental Protection

Chassis Model: HQG1180EVCS1

Battery System: Using High-quality Lithium Iron Phosphate Batteries From CATL, With A Capacity Of 210.56 KWh And Safe And Stable.

Drive Motor: Permanent Magnet Synchronous Motor, Rated/peak Power 175kW/265kW, Rated/peak Torque 200/460N. M.

Charging Method: Supports Fast Charging, Which Can Be Completed In 110 Minutes.

Highlight Interpretation: Mature Pure Electric Chassis Technology Not Only Achieves Zero Emissions And Low Noise During Operation, But Also Has Operating Costs Far Lower Than Traditional Fuel Vehicles.

02. Multi Functional Installation SystemDealing With Global Homework Scenarios

Box Volume: 12m ³ Large Capacity Water Tank, Manufactured Using Advanced Automated Production Lines, With Stable Quality, Sturdy Structure, And Anti-corrosion And Rust Prevention.

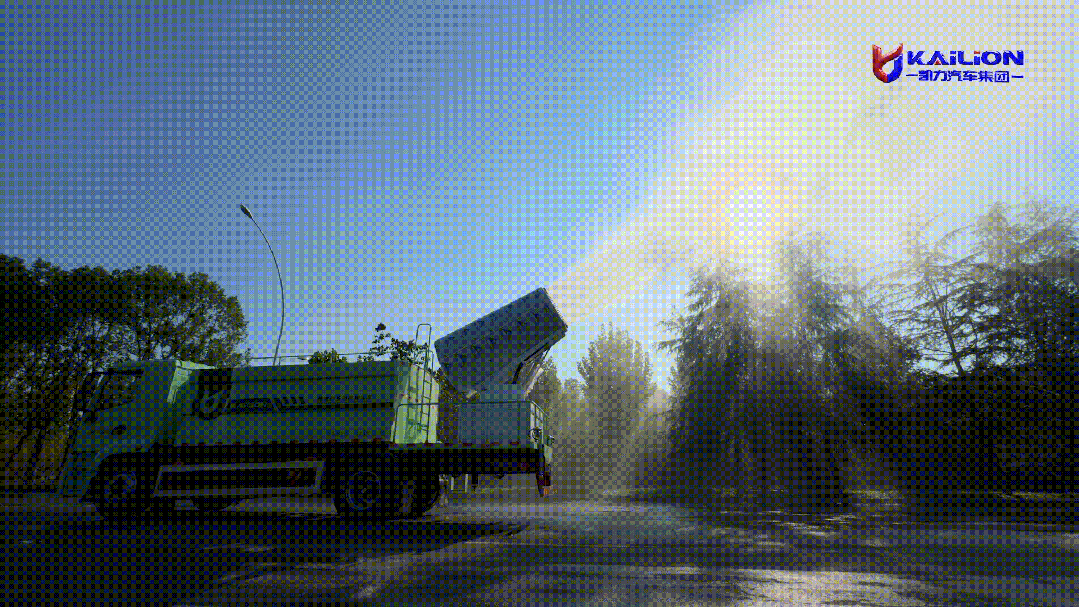

Long Range Fog Cannon: The Fog Cannon Has A Range Of ≥ 100 Meters, A Wind Cannon Design, Fast Dust Removal Speed, And Wide Coverage. It Is The "ace Weapon" For Controlling Dust On Construction Sites And Mining Areas.

Standard Configuration:

Front Flushing: 18 Meters Wide, Used For Road Flushing.

Rear Sprinkling: 12 Meters Wide, Used For Road Sprinkling, Moisture Retention And Dust Reduction.

Side Spray: Covering Both Sides Of The Road.

High Pressure Water Cannon: Located On The Rear Work Platform, Capable Of 360 ° Rotation, With A Cylindrical Range Of 35 Meters (suitable For Firefighting) And A Foggy Range Of 15 Meters (suitable For Green Spraying).

Powerful Water Pump: With A Vertical Suction Range Of 7 Meters, Equipped With A National Standard 65 Fire Interface, Which Can Be Directly Connected To A Fire Hydrant To Quickly Add Water.

Highlight Interpretation: From 100 Meter Long Distance Spray To Fine Road Flushing, And Then To Emergency Fire Fighting, One Vehicle Can Integrate Up To Seven Or Eight Functions, Truly Realizing Multi Use Of One Vehicle, And Greatly Improving The Value Of Equipment.

03. Precision Detail ConfigurationHighlight Excellent Quality

Intelligent Control System

The Standard Electric Control System Can Control The Rotation Speed Of Spray Unit Blades And Liquid Flow.

Humanization And Safety Design

The Tail Of The Tank Is Equipped With An Operating Platform With A Safety Barrier. The Pipeline Is Equipped With A Pressure Gauge, And The Tank Has A Water Level Gauge, Making The Key Parameters Clear At A Glance.

Quality Components

The Water Pump, Power Take-off, Ball Valve, Filter Screen, Etc. Are All National Standard Products With Reliable Performance.

Highlight Interpretation: Not Only Is It Powerful, But It Also Strives For Excellence In Handling Intelligence, Job Safety, And Component Reliability.

04. Rich Selection OptionsSecurity Guarantee

Practical Optional Parts

Front Electronic Water Cannon: Cabin Control, Used For Landscaping And Dust Reduction.

Cylinder Control System: Achieve Individual And Precise Control Of Each Water Valve In The Cab.

Tail Arrow Light: Effectively Warns Rear Vehicles During Operation, Enhancing Safety.

Highlight Interpretation: Provides Flexible Customization Options To Meet Users' Personalized Needs.

Intelligent Manufacturing Technology

Automated Production Line: Relying On Advanced Equipment Such As Welding Robots, High-power Laser Cutting Machines, And CNC Hydraulic Bending Machines.

Standardized Tank Body Process: The Tank Body Is Manufactured Using An Automatic Assembly Line, Which Goes Through Advanced Processes Such As Cutting, Automatic Welding Of Assembled Plates, And Spinning Forming Of The Head.

Standardized Component System: The Core Components Are All Made Of National Standard Products, Independently Molded, With Strong Universality, And Easier Maintenance In The Later Stage.

Highlight Interpretation: Choosing Kaili Is Not Only About Choosing A High-quality Product, But Also About Choosing A Reliable Partner With Strong Research And Development Capabilities, Advanced Manufacturing Capabilities, And A Complete Quality Control System.
