【 Hot Selling Promotion 】 Kailifeng - Foton Navigation M5 Compression Garbage Truck

150 Horsepower Powerful Drive 5.8 Square Meters Efficient Quick Installation

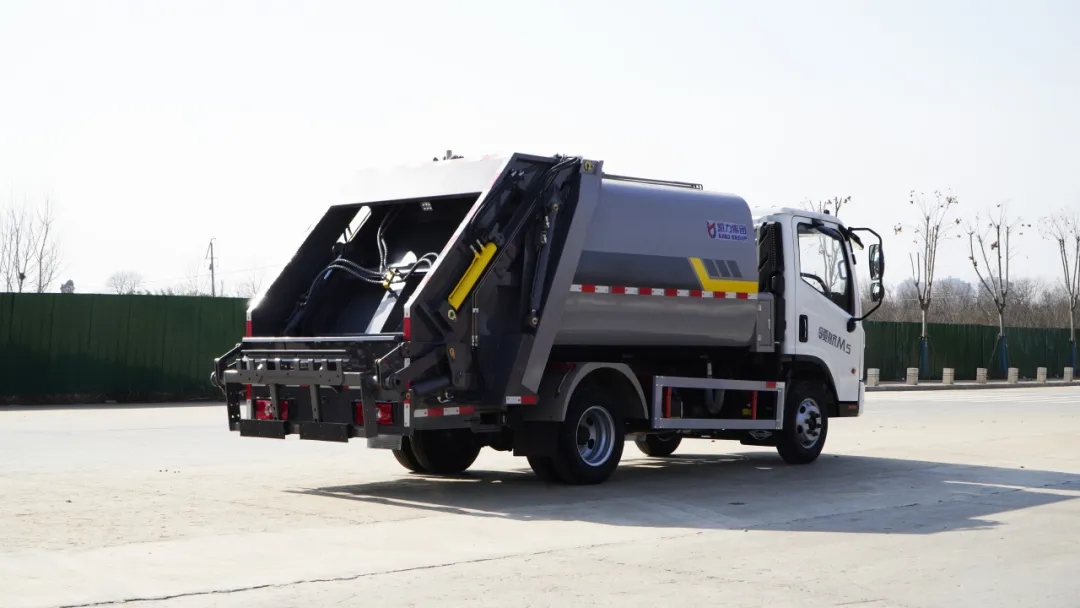

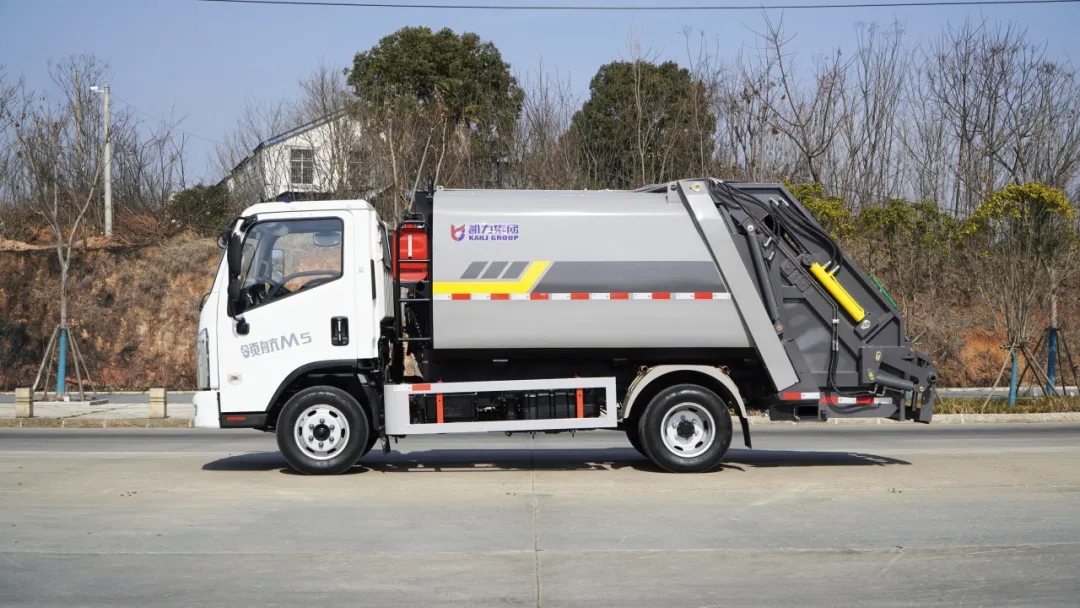

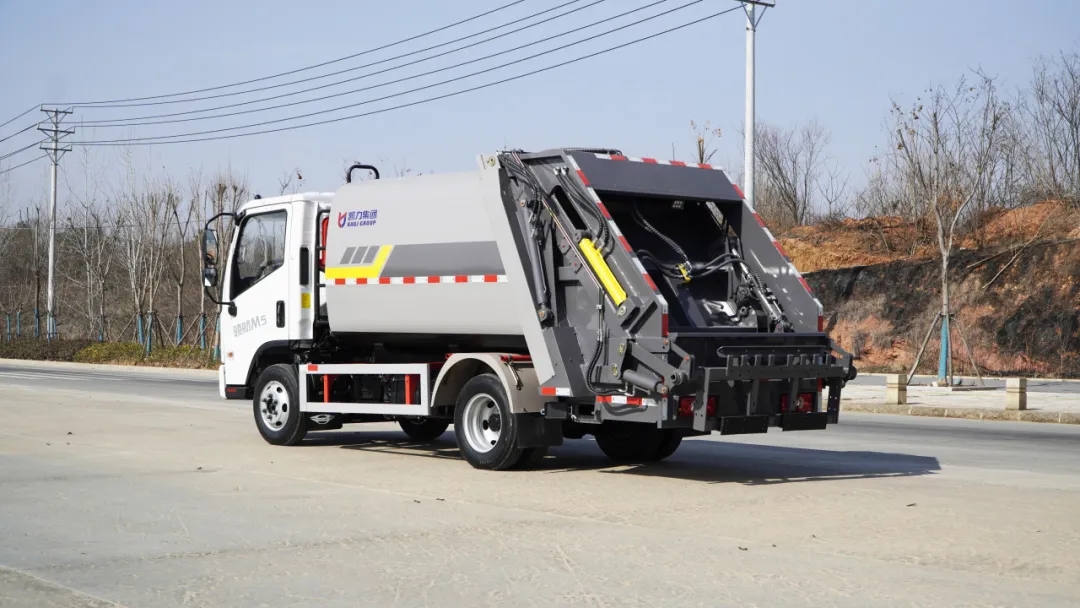

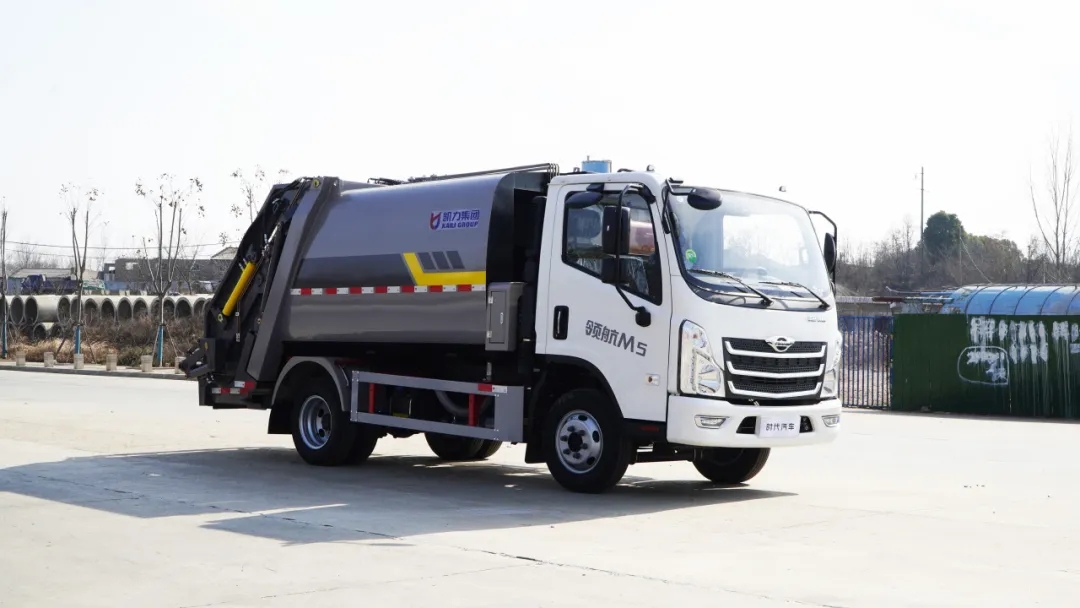

Foton Navigation M5 Compressed Garbage Truck

The Kaili KLF5041ZYSB6 Compressed Garbage Truck Is Developed Based On The Foton Navigation M5 Chassis (wheelbase 2800mm) And Is Equipped With A 150 Horsepower National VI Diesel Engine (110kW).

The Effective Volume Of The Box Is 5.8m ³, And It Comes Standard With Bidirectional Compression Technology And Four Operating Modes. The Tail Can Choose Four Feeding Mechanisms: Flip Plate, Floor Bucket, Detachable Triangular Bucket, And Swing Arm Mechanism. It Is Designed Specifically For Efficient Operations In Municipal Sanitation And Industrial Plants.

Core Configuration

Chassis Parameters

Model: Foton Navigation M5

Wheelbase: 2800mm

Tire: 6.50 Steel Wire Tire

Power System

Engine: Q25A-150E60 Diesel Engine (110kW)

Horsepower: 150 Horsepower

Dimensions And Mass

Dimensions: 5995 × 2000/2050 × 2450mm (industry Exclusive Double Width Design)

Curb Weight: 3860kg

Rated Load Capacity: 505kg

Box System

Volume: 5.8m ³

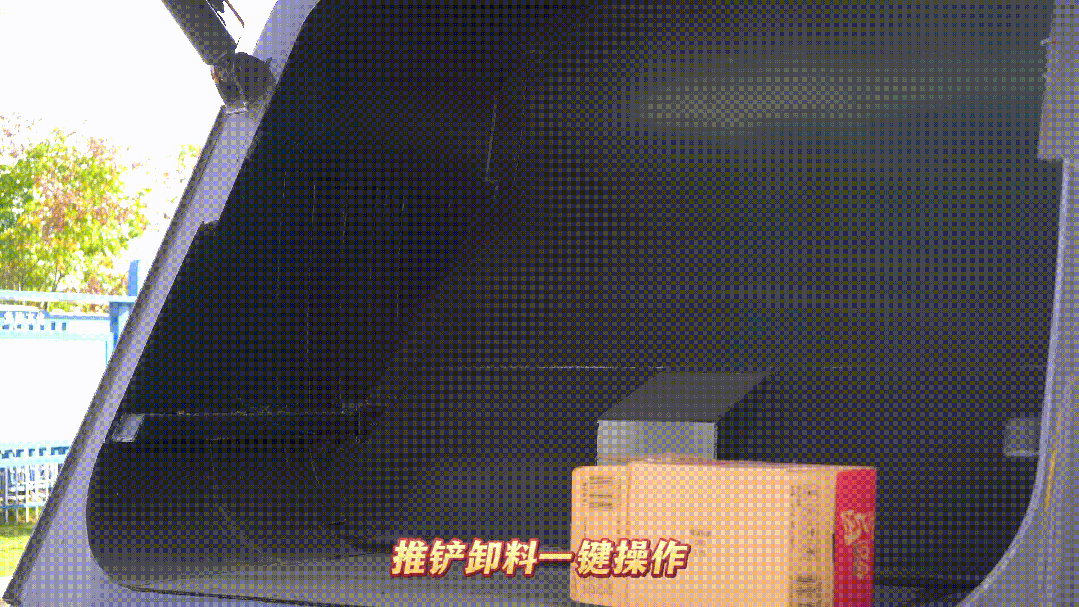

Unloading Time: ≤ 60 Seconds

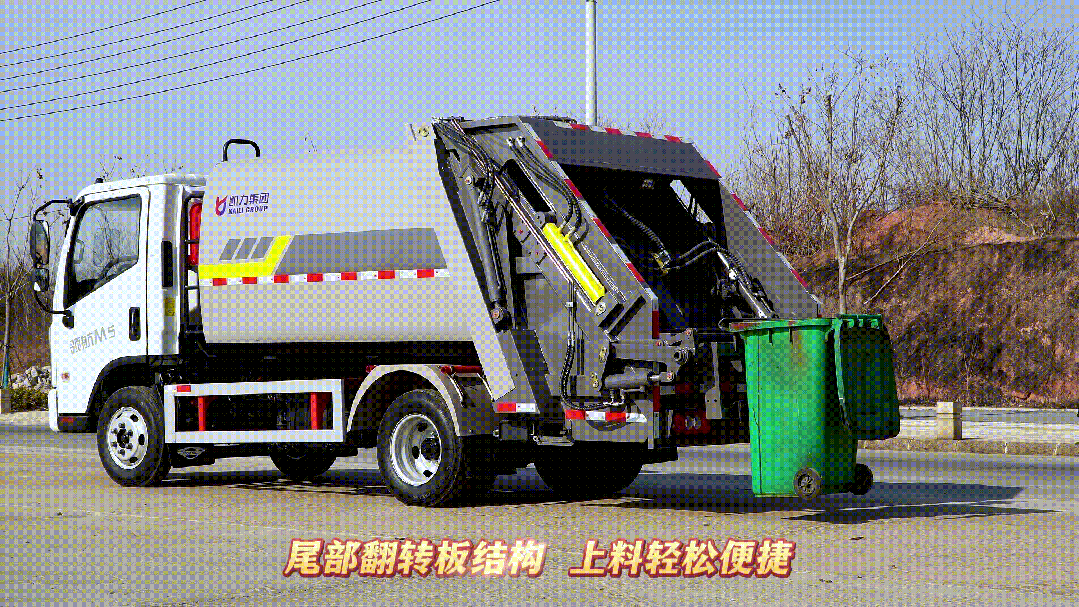

Tail Device: Four Types Of Structures Are Available, Including Flip Board, Triangular Bucket, Large Landing Bucket, And Swing Arm Mechanism, To Meet Different Scenarios

Operation Control

Four Mode Operation: Driver's Cab, Multi Way Valve, Rear Electronic Control, Remote Control

Control System: Imported CAN Bus+remote Control

Hydraulic System

New Structure External Oil Cylinder, Rodless Chamber For Oil Intake, Boosting And Speeding Up, Maintenance Free.

One Feed Cycle Time 12-25 Seconds

Compression Ratio ≥ 1:4

Special Design Hydraulic System

1: The Entire Series Comes Standard With A Bucket Lever With Spring Buffering, Which Can Effectively Prevent Damage To The Garbage Bin Caused By Inertia Swinging During Garbage Loading.

2: Thickened Slide, Built-in Nylon Slider, Optimized Slide Structure, Minimal Wear During Use, And Easier Maintenance In The Later Stage.

3: Double Sewage Tank+drainage Pipe+night Lighting Design, With Humanized Details Fully Integrated.

Product Features

The Strongest Power In The Same Class

110kW Engine, 150 Horsepower, The Highest Power In The Same Class In The Industry.

Dual Width Flexible Adaptation

The Body Width Can Be Selected From 2000mm Or 2050mm, With Flexible Adaptation And Independent Choice.

Intelligent Four Mode Control

Support Three-point Operation Inside The Cab, Front Of The Box, And Rear Of The Box, With A Remote Control As Standard;

Strong Sealing To Prevent Leakage

Curved Streamlined Box Body (formed By One-time Rolling Of Four Axis Bending Machine), Equipped With Dual Sewage Tanks And Drainage Pipes;

Electrophoresis+powder Coating Anti-corrosion Process

Box Electrophoresis+powder Coating, With Anti-corrosion And Anti Rust Properties That Are Durable And Long-lasting.

Product Advantages

Precision Manufacturing Quality Assurance

Using CNC Laser Cutting, The Precision Of The Tooling Is Guaranteed; Intelligent Robot Automatic Welding, Safe And Reliable, With Good Sealing, Ensures Product Quality From The Source.

Top Coating Is Durable And Long-lasting

Choose Top Electrophoresis And Equip With Modular Design And Standardized Production Of Structural Components With Standard Electrostatic Powder Coating. The Paint Surface Is Bright And Durable, Moisture-proof And Corrosion-resistant, And Has A Worry Free Ten-year Anti-corrosion And Rust Prevention, Reducing Maintenance Costs In The Later Stage.

Efficient And Practical, Value For Money

Bidirectional Compression Technology Is Far Ahead In Terms Of Operational Efficiency, Making It A Profitable Tool For Improving The Efficiency Of Garbage Transportation.

Intelligent Control, Stable And Convenient

The Electronic Control System Is Developed In Collaboration With Foreign Technical Teams. Compared To The Old PLC, The CAN Bus Control Is More Intelligent, Paired With A Photoelectric Sensing System And A Standard Remote Control, Providing More Stable Performance And Convenient Use.

Ultra High Repurchase Reputation Certification

With Excellent Quality And Performance, The Product Has A High Repurchase Rate, And Once Used, It Will Not Be Missed. The Customer Stickiness Is High And The Trust Is Strong.

Full Service, Worry Free After-sales Service

The 24-hour After-sales Service Team Is Well-known And Widely Praised In The Industry, And "Kaili Wanli Xing's Service Shows True Feelings". 400 Global After-sales Service Hotline, With Fast Response And Worry Free After-sales Service, Allowing You To Use The Car Without Any Worries Throughout The Entire Process.

Industry Recognition For Leading Technology

As A National High-tech Enterprise, A Specialized And Innovative "little Giant" Enterprise In Hubei Province, And A Single Champion In The Manufacturing Industry In Hubei Province, Kaili Group Has Mature Production Processes And Excellent Technical Teams, And Its Product Technical Strength Is Guaranteed.

Full Industry Chain Support, Strong Backing

Kaili Automobile Group Covers The Entire Industry Chain Of Research And Development, Production, Sales, And Service, With Advanced Production Equipment And Production Lines, Providing Strong Support For Product Quality And Service.

Covering Factory Waste Collection, Underground Garage Cleaning, Power Station Transportation, Factory/park/street Sanitation Operations, Community And Township Waste Treatment, Especially Suitable For Steep Slope Sections In Mountainous Towns, Narrow Alleys In Old Communities, And Scattered Waste Collection Scenarios.
