【 Hot Selling Promotion 】 Kailifeng Dongfeng Tuyi 5.3-meter Compression Garbage Truck

Extreme Traffic Compression Pioneer

Dongfeng Tuyi Compressed Garbage Truck

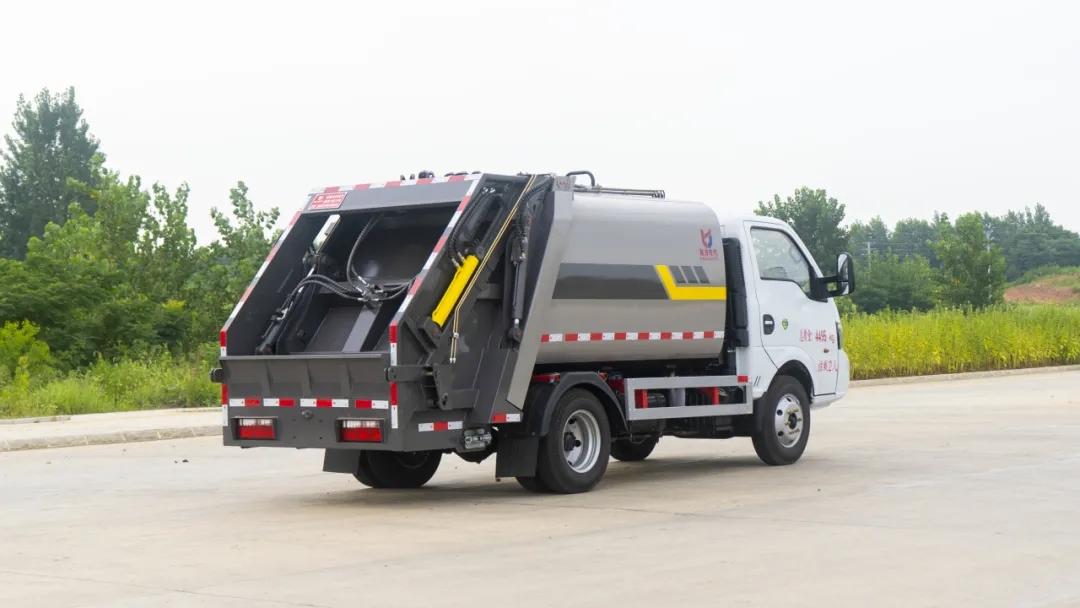

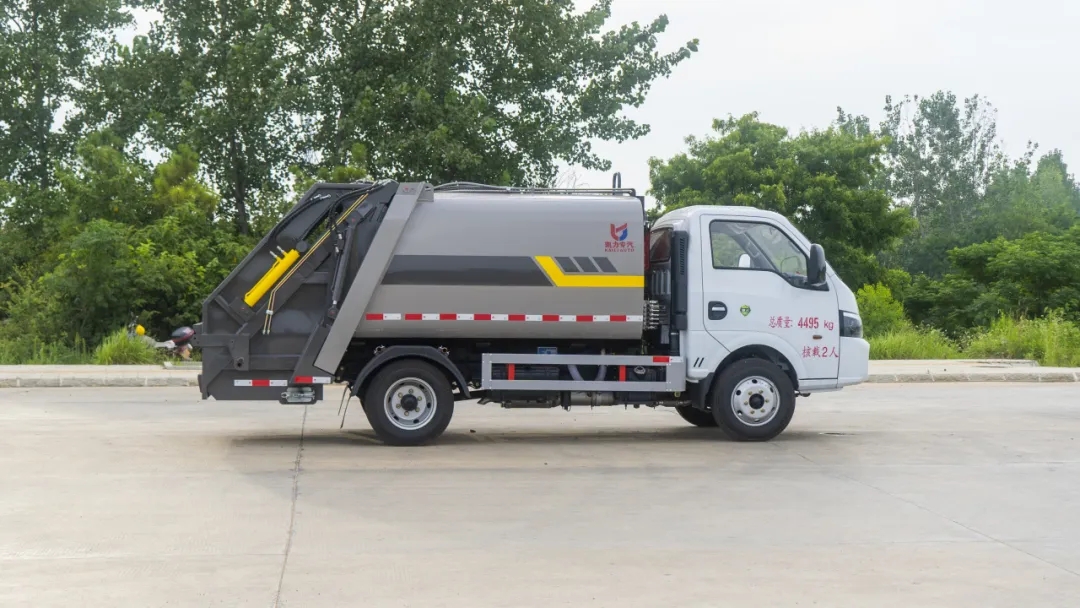

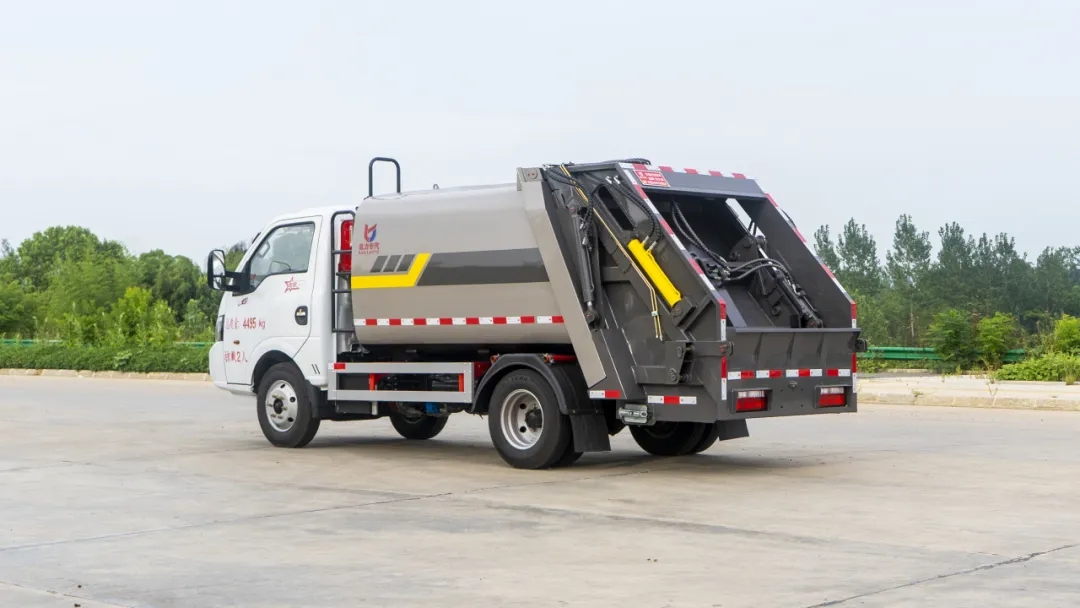

The Kaili KLF5041ZYSE6 5.3-meter Compressed Garbage Truck Is Developed Based On The Dongfeng Tuyi Chassis (wheelbase 2800mm), With A Body Height Of Only 2250mm, The Lowest In The Industry. It Can Be Parked In An Underground Garage With A Blue License Plate And Is Designed For Extreme Height Limit Scenarios.

Adopting Bidirectional Compression Technology And Sealed Box, Equipped With Four Operation Modes Including Cab, Multi Way Valve, Rear Electronic Control, And Remote Control, To Achieve Efficient Compression And Transportation Of Garbage. Suitable For Scenarios Where Traditional Vehicles Cannot Enter, Such As Old Residential Areas And Underground Garages.

Core Configuration

Chassis Parameters

Model: Dongfeng Tuyi

Wheelbase: 2800mm

Tire: 185R15LT 8PR

Power System

Engine: Quanchai 95 National VI Diesel Engine (70kW)

Transmission: 5-speed Gearbox

Dimensions And Mass

Dimensions: 5900 × 1920 × 2250mm

Curb Weight: 3865kg

Rated Load Capacity: 500kg

Box System

Volume: 5.3m ³

Unloading Time: ≤ 60 Seconds

Tail Device: Four Types Of Structures Are Available, Including Flip Board, Triangular Bucket, Large Landing Bucket, And Swing Arm Mechanism, To Meet Different Scenarios

Operation Control

Four Mode Operation: Driver's Cab, Multi Way Valve, Rear Electronic Control, Remote Control

Control System: Imported CAN Bus+remote Control

Hydraulic System

New Structure External Oil Cylinder, Rodless Chamber For Oil Intake, Boosting And Speeding Up, Maintenance Free.

One Feed Cycle Time 12-25 Seconds

Compression Ratio ≥ 1:4

Special Design Hydraulic System

1: The Entire Series Comes Standard With A Bucket Lever With Spring Buffering, Which Can Effectively Prevent Damage To The Garbage Bin Caused By Inertia Swinging During Garbage Loading.

2: Thickened Slide, Built-in Nylon Slider, Optimized Slide Structure, Minimal Wear During Use, And Easier Maintenance In The Later Stage.

3: Double Sewage Tank+drainage Pipe+night Lighting Design, With Humanized Details Fully Integrated.

Product Features

Extreme Passability

The Precise Control Of The Vehicle Size, Coupled With A Detachable Ladder And A Height Adapted To The Basement Entrance, Allows For Easy Access To Confined Spaces Such As Underground Garages And Narrow Roads In Residential Areas, Solving The Pain Points Of Traditional Garbage Trucks Being Unable To Enter Or Turn. With A Wheelbase Of 2850mm, It Is Flexible In Turning And Easy To Operate In Narrow Areas.

Efficient Bidirectional Compression

Adopting External Oil Cylinder And Bidirectional Compression Technology, A Single Feeding Cycle Only Takes 12-25 Seconds;

Intelligent Four Mode Control

The Intelligent Control System Adopts Imported CAN Bus Design, Modular Structure, Combined With Dual Control Of Proximity Switch And Oil Pressure Induction, To Achieve Efficient And Stable Compression Scheme. Equipped With Three Sets Of Manual, Automatic, And Semi-automatic Control Modes, Both The Cab And The Front And Rear Of The Box Can Be Operated. Equipped With A Remote Control As Standard, It Easily Completes The Entire Process Of Garbage Dumping, Compression, And Unloading.

Strong Sealing To Prevent Leakage

The Box Adopts A Circular Arc Flow Linear Shape, Which Is Formed By A Four Axis Rolling Machine In One Rolling Arc To Eliminate The Risk Of Garbage Leakage From The Root. The Material Selected Is High-strength Manganese Steel Plate, Which Has Strong Deformation Resistance, High Structural Reliability, And Strong Wear And Corrosion Resistance.

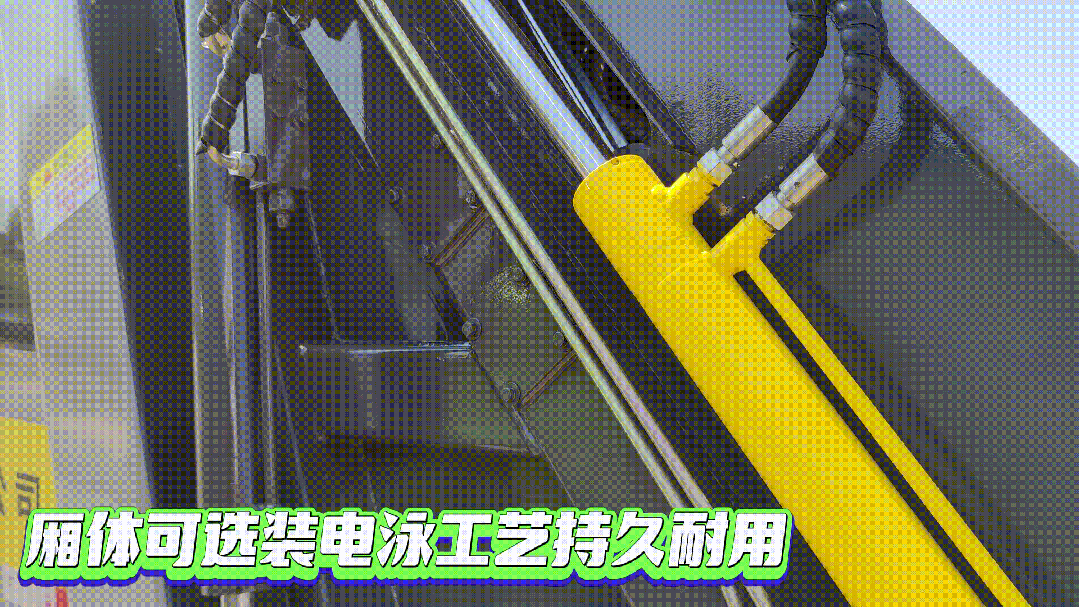

Electrophoresis+powder Coating Anti-corrosion Process

Box Electrophoresis+powder Coating, With Anti-corrosion And Anti Rust Properties That Are Durable And Long-lasting.

Product Advantages

Precision Manufacturing Quality Assurance

Using CNC Laser Cutting, The Precision Of The Tooling Is Guaranteed; Intelligent Robot Automatic Welding, Safe And Reliable, With Good Sealing, Ensures Product Quality From The Source.

Top Coating Is Durable And Long-lasting

Choose Top Electrophoresis And Equip With Modular Design And Standardized Production Of Structural Components With Standard Electrostatic Powder Coating. The Paint Surface Is Bright And Durable, Moisture-proof And Corrosion-resistant, And Has A Worry Free Ten-year Anti-corrosion And Rust Prevention, Reducing Maintenance Costs In The Later Stage.

Efficient And Practical, Value For Money

Bidirectional Compression Technology Is Far Ahead In Terms Of Operational Efficiency, Making It A Profitable Tool For Improving The Efficiency Of Garbage Transportation.

Intelligent Control, Stable And Convenient

The Electronic Control System Is Developed In Collaboration With Foreign Technical Teams. Compared To The Old PLC, The CAN Bus Control Is More Intelligent, Paired With A Photoelectric Sensing System And A Standard Remote Control, Providing More Stable Performance And Convenient Use.

Ultra High Repurchase Reputation Certification

With Excellent Quality And Performance, The Product Has A High Repurchase Rate, And Once Used, It Will Not Be Missed. The Customer Stickiness Is High And The Trust Is Strong.

Full Service, Worry Free After-sales Service

The 24-hour After-sales Service Team Is Well-known And Widely Praised In The Industry, And "Kaili Wanli Xing's Service Shows True Feelings". 400 Global After-sales Service Hotline, With Fast Response And Worry Free After-sales Service, Allowing You To Use The Car Without Any Worries Throughout The Entire Process.

Industry Recognition For Leading Technology

As A National High-tech Enterprise, A Specialized And Innovative "little Giant" Enterprise In Hubei Province, And A Single Champion In The Manufacturing Industry In Hubei Province, Kaili Group Has Mature Production Processes And Excellent Technical Teams, And Its Product Technical Strength Is Guaranteed.

Full Industry Chain Support, Strong Backing

Kaili Automobile Group Covers The Entire Industry Chain Of Research And Development, Production, Sales, And Service, With Advanced Production Equipment And Production Lines, Providing Strong Support For Product Quality And Service.

Covering Fully Enclosed Scenarios Such As Factory Garbage Collection, Underground Garage Cleaning, Power Station Transportation, Factory/park/street Sanitation Operations, And Community And Township Garbage Disposal.
