【 Hot Selling Promotion 】 Kailifeng - Foton Small Card Star 3 Compressed Garbage Truck

Passing Through The Basement, Quickly Flatten The Garbage

Futian Xiaoka Star 3 Compressed Garbage Truck

The Vehicle Is A Kaili KLF5040ZYSB6 5.3-meter Compressed Garbage Truck, Designed Specifically For Narrow Space Garbage Removal, Using A Foton Small Truck Chassis (wheelbase Of 2850mm).

The Vehicle Integrates A Sealed Compression Box, Bidirectional Compression Technology, And Intelligent Control System To Achieve Efficient Operation Throughout The Entire Process Of Garbage Dumping, Extrusion, And Transportation. The Compression Ratio Reaches 1:4, With A Single Cycle Time Of ≤ 20 Seconds, Doubling The Daily Garbage Processing Capacity. Suitable For Enclosed And Harmless Garbage Transportation In Municipal Sanitation, Residential Property Management, Underground Parking Lots And Other Scenarios.

Core Configuration

Core Configuration

Chassis Parameters

Model: Futian Xiaoka 3

Wheelbase: 2850mm

Tire: 6.50 Steel Wire Tire

Power System

Engine: Quanchai 023-115060 (85kW)/023-132E60 (97kW) National VI Diesel Engine

Dimensions And Mass

Dimensions: 5995 × 2000 × 2450mm

Curb Weight: 3865kg

Rated Load Capacity: 500kg

Box System

Volume: 5.3m ³

Unloading Time: ≤ 60 Seconds

Tail Device: Four Types Of Structures Are Available, Including Flip Board, Triangular Bucket, Large Landing Bucket, And Swing Arm Mechanism, To Meet Different Scenarios

Operation Control

Four Mode Operation: Driver's Cab, Multi Way Valve, Rear Electronic Control, Remote Control

Control System: Imported CAN Bus+photoelectric Sensing

Hydraulic System

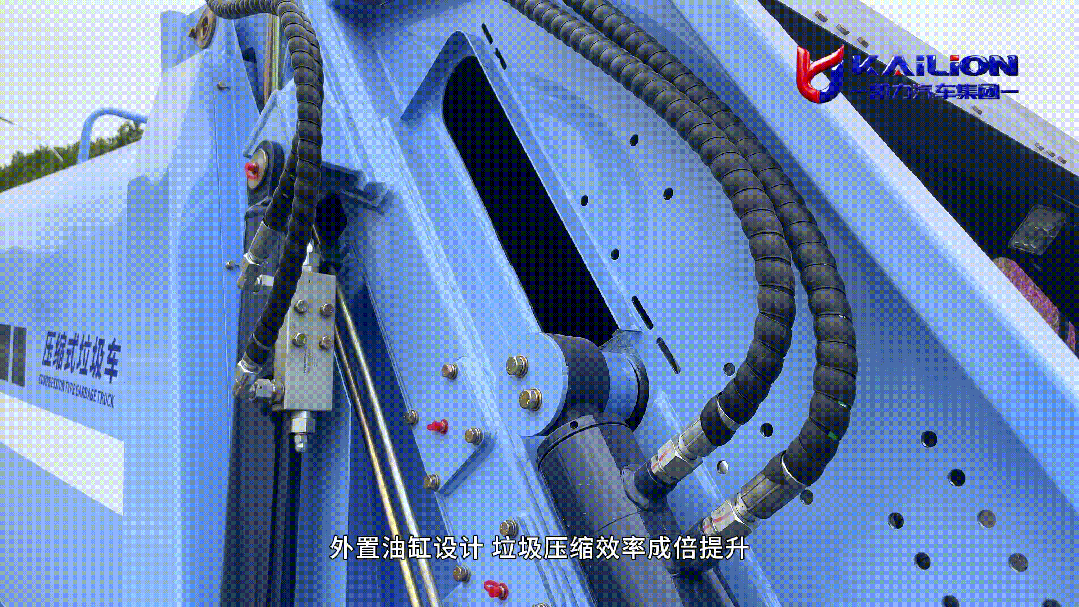

New Structure External Oil Cylinder, Rodless Chamber For Oil Intake, Boosting And Speeding Up, Maintenance Free.

One Feed Cycle: 12-25 Seconds

Special Design Hydraulic System

1: The Entire Series Comes Standard With A Bucket Lever With Spring Buffering, Which Can Effectively Prevent Damage To The Garbage Bin Caused By Inertia Swinging During Garbage Loading.

2: Thickened Slide, Built-in Nylon Slider, Optimized Slide Structure, Minimal Wear During Use, And Easier Maintenance In The Later Stage.

3: Double Sewage Tank+drainage Pipe+night Lighting Design, With Humanized Details Fully Integrated.

Product Features

Extreme Passing Ability

The Precise Control Of The Body Size, Coupled With A Detachable Ladder, Allows For Easy Access To Confined Spaces Such As Underground Garages And Narrow Roads In Residential Areas, Solving The Pain Points Of Traditional Garbage Trucks Being Unable To Enter Or Turn. With A Wheelbase Of 2850mm, It Is Flexible In Turning And Easy To Operate In Narrow Areas.

Efficient Bidirectional Compression

By Using An External Oil Cylinder And Bidirectional Compression Technology, A Single Feeding Cycle Only Takes 12-25 Seconds.

Intelligent Four Mode Control

The Intelligent Control System Adopts Imported CAN Bus Design, Modular Structure, Combined With Dual Control Of Proximity Switch And Oil Pressure Induction, To Achieve Efficient And Stable Compression Scheme. Equipped With Four Control Modes: Manual, Automatic, And Semi-automatic, Both The Cab And The Front And Rear Of The Box Can Be Operated. Equipped With A Remote Control As Standard, It Easily Completes The Entire Process Of Garbage Dumping, Compression, And Unloading.

High Strength Sealed Enclosure

The Box Adopts A Circular Arc Flow Linear Shape, Which Is Formed By A Four Axis Rolling Machine In One Rolling Arc To Eliminate The Risk Of Garbage Leakage From The Root. The Material Selected Is High-strength Manganese Steel Plate, Which Has Strong Deformation Resistance, High Structural Reliability, And Strong Wear And Corrosion Resistance.

Electrophoresis+powder Coating Anti-corrosion Process

Box Electrophoresis+powder Coating, With Anti-corrosion And Anti Rust Properties That Are Durable And Long-lasting.

Product Advantages

Precision Manufacturing Quality Assurance

Using CNC Laser Cutting, The Precision Of The Tooling Is Guaranteed; Intelligent Robot Automatic Welding, Safe And Reliable, With Good Sealing, Ensures Product Quality From The Source.

Top Coating Is Durable And Long-lasting

Choose Top Electrophoresis And Equip With Modular Design And Standardized Production Of Structural Components With Standard Electrostatic Powder Coating. The Paint Surface Is Bright And Durable, Moisture-proof And Corrosion-resistant, And Has A Worry Free Ten-year Anti-corrosion And Rust Prevention, Reducing Maintenance Costs In The Later Stage.

Narrow Domain Exclusive Strong Adaptability

It Can Be Used For Blue License Plates And Underground Parking, Designed Specifically For Narrow Roads, With A Compact Body, Controllable Height, And Few Traffic Restrictions.

Intelligent Control, Stable And Convenient

The Electronic Control System Is Developed In Collaboration With Foreign Technical Teams. Compared To The Old PLC, The CAN Bus Control Is More Intelligent, Paired With A Photoelectric Sensing System And A Standard Remote Control, Providing More Stable Performance And Convenient Use.

Ultra High Repurchase Reputation Certification

With Excellent Quality And Performance, The Product Has A High Repurchase Rate, And Once Used, It Will Not Be Missed. The Customer Stickiness Is High And The Trust Is Strong.

Full Service, Worry Free After-sales Service

The 24-hour After-sales Service Team Is Well-known And Widely Praised In The Industry, And "Kaili Wanli Xing's Service Shows True Feelings". Non Customer Caused Damage, 400 Global After-sales Service Hotline, Fast Response, Worry Free After-sales Service, Allowing You To Use The Car Without Any Worries Throughout The Entire Process.

Industry Recognition For Leading Technology

As A National High-tech Enterprise, A Specialized And Innovative "little Giant" Enterprise In Hubei Province, And A Single Champion In The Manufacturing Industry In Hubei Province, Kaili Group Has Mature Production Processes And Excellent Technical Teams, And Its Product Technical Strength Is Guaranteed.

Full Industry Chain Support, Strong Backing

Kaili Automobile Group Covers The Entire Industry Chain Of Research And Development, Production, Sales, And Service, With Advanced Production Equipment And Production Lines, Providing Strong Support For Product Quality And Service.

This 5.3fang Foton Small Card Star 3 Compressed Garbage Truck Is Particularly Skilled In Confined Space Operations, With Core Scenarios Including:

Underground Garage Garbage Removal: Easy Access To Underground Garages, Solving The Problem Of Traditional Vehicles Not Being Able To Enter;

Narrow Passage Collection In Residential Areas: Narrow Passages And Gaps Between Buildings Within The Community Can Be Flexibly Accessed, Making Door-to-door Collection And Transportation More Convenient;

Internal Transportation Within The Factory/park: Efficiently Complete Centralized Garbage Transportation In Areas Such As The Factory Workshop And Narrow Roads In School Parks;

Township Alley Cleaning: Narrow Streets In Townships And Alleys In Old Urban Areas, With No Pressure On Traffic;

Municipal Short Distance Collection: Cooperate With Large Garbage Trucks To Complete The "last Mile" Narrow Area Garbage Collection.

Realize Efficient And Enclosed Operations In All Scenarios! Choose The Foton Xiaoka Star 3 Compressed Garbage Truck To Make The Narrow Space Garbage Transfer From "difficult" To "easy". Kaili Uses A Sense Of Responsibility To Create Exclusive Equipment, Accompanying You To Efficiently Handle The Sanitation Work In Every Corner!
