[Fire Fighting Vehicle] 7 Cubic Meters Of Strong Output Volume, Kailifeng Dongfeng D9 Foam Fire Truc

In The Field Of Firefighting And Rescue, The Carrying Capacity And Firefighting Efficiency Of Equipment Often Determine The Success Or Failure Of Rescue In The Face Of Large-scale Fires Or Complex Disasters

Kailifeng Dongfeng D9 Foam Fire Truck Has Become The "hard Core Main Force" To Deal With Large-scale Fires With A Huge Liquid Carrying Capacity Of 7 Square Meters, A Powerful Pumping Force Of 40L/s And A Super Long Range Of 60 Meters

It Not Only Continues Kaili Automobile's Strict Standards For Professional Equipment, But Also Achieves Breakthroughs In Capacity, Power, And Detail Design, Providing Solid Support For Large-scale Rescue Operations

Next, Let's Unveil Its Mysterious Veil Together And Explore The Core Strength Of This Rescue Weapon!

Extra Large Capacity+powerful Output

The Key To Dealing With Large-scale Fires Is' Sustained Combat Capability '. This Kelifeng Dongfeng D9 Foam Fire Truck Has A Liquid Carrying Capacity Of 7 Cubic Meters (5.2 Cubic Meters Of Water+2.1 Cubic Meters Of Foam), Which Can Meet The Needs Of Long-term High-intensity Fire Fighting. The Water Tank Is Welded With High-quality Carbon Steel Plates Consisting Of A 4mm Bottom Plate, 3mm Side Plate, And Sealing Plate. The Internal Anti-corrosion Treatment Ensures Clean Water Quality; The Foam Tank Is Made Of 304 Stainless Steel. The Thickness Of The Bottom Plate Is 4mm, And The Side Plate And Sealing Plate Are 3mm. Its Corrosion Resistance Is Far Superior To Ordinary Steel. 2.1 Cubic Meters Of Foam Liquid Is Enough To Cover 500 Square Meters Of Oil Fire For Initial Prevention And Control.

The Rated Flow Of CB10/40 Atmospheric Fire Pump Is 40L/s @ 1.0MPa, Which Means That It Can Output 2.4 Tons Of Water Or Foam Mixture Per Minute. The Matched PL8/32 Fire Monitor Has A Water Range Of ≥ 60m And A Foam Range Of ≥ 48m. The 60m Range Is Equivalent To The Height Of 20 Floors, Which Can Easily Cover The High-altitude Fire Of Large Factories, Warehouses And Other Buildings. The Horizontal 360 °+pitch-35 °~70 ° Spray Angle, Together With The PH64 Ring Pump Foam Proportioner, Can Efficiently Complete Both Large Area Of Water Compaction And Precise Foam Coverage.

High Power Chassis+intelligent Handling

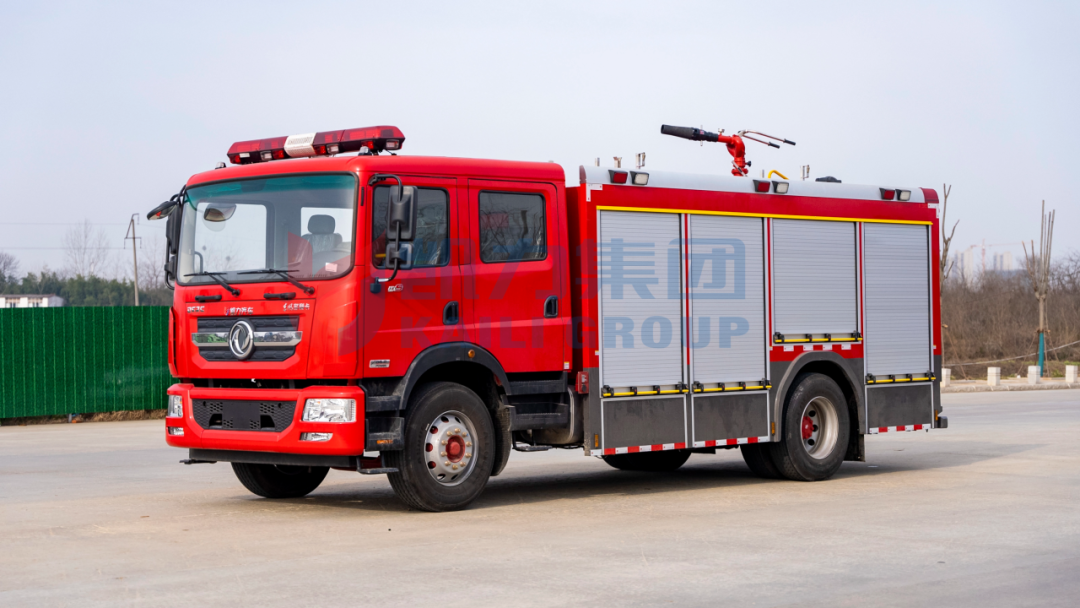

To Drive The Liquid Carrying Capacity Of 7 Sides And Quickly Reach The Site, Strong Power Support Is Essential. The Car Is Equipped With The Dongfeng D9 National VI Chassis, With A Rated Engine Power Of 169KW, A 4 × 2 Drive Type, And A 4700mm Wheelbase. Under Full Load Conditions, The Maximum Speed Can Still Reach 105km/h, Ensuring That "it Will Move Immediately Upon Hearing The Alarm And Arrive Quickly".

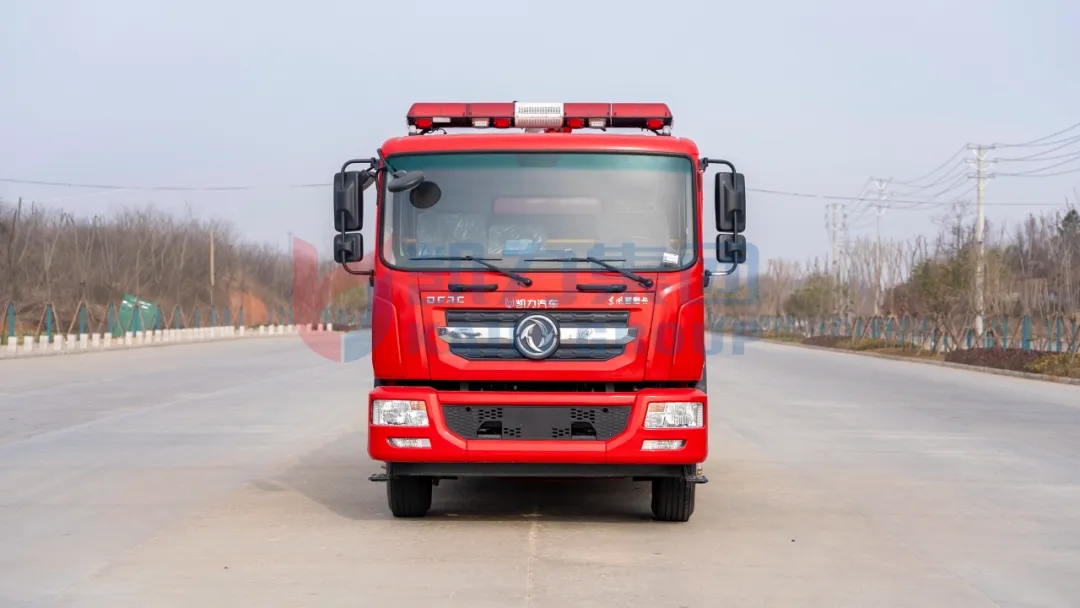

In Terms Of Control Design, The Cab Adopts A Flat Head Four Door Double Row Structure, With A Seating Layout Of 3 People In The Front Row And 3 People In The Back Row, Meeting The Synchronous Deployment Of A 6-person Combat Formation. 100W Alarm, Power Take-off Control Switch And Other Equipment Are Centrally Arranged In The Driving Area, Within Reach; The Sandwich Type Full Power Take-off Is Controlled By An Electromagnetic Valve, With A Response Time Of ≤ 0.5 Seconds. Combined With A Forced Water Cooling System, It Can Stably Output Power Even When Working Continuously. The Electrical System Is Also Known As The "rescue Eye", With A 1.9-meter Long Row Of LED Warning Lights Visible From A Distance. The Rear Top 360 ° LED Remote Control Searchlight Can Penetrate Thick Smoke And Lock The Fire Source. There Are Three Sets Of Flashing Lights And Side Lighting On Both Sides, Making Night Rescue As If It Were Daylight.

Scientific Layout+durable Structure

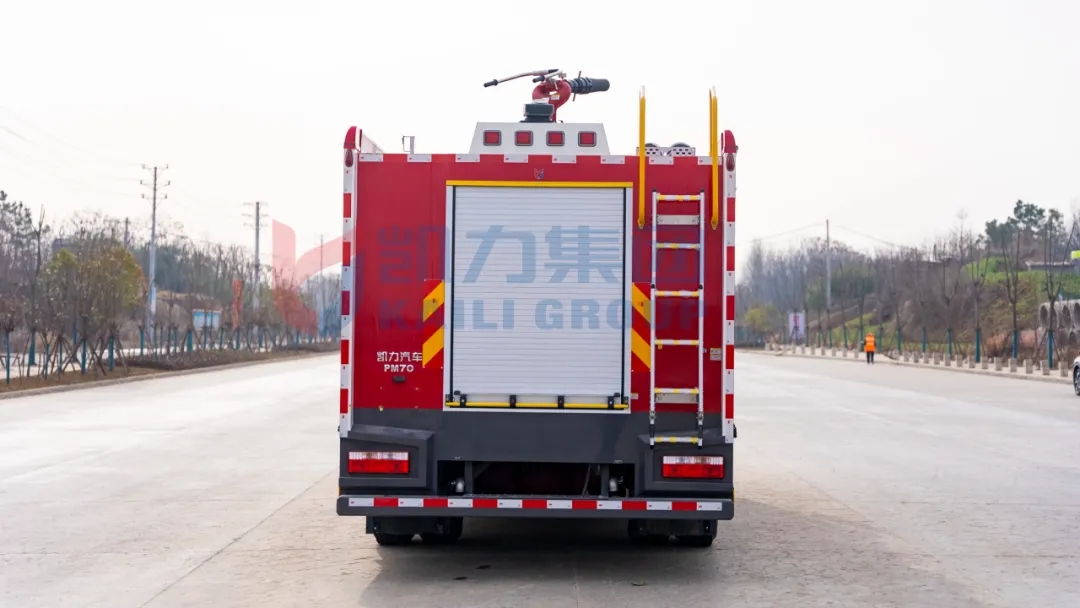

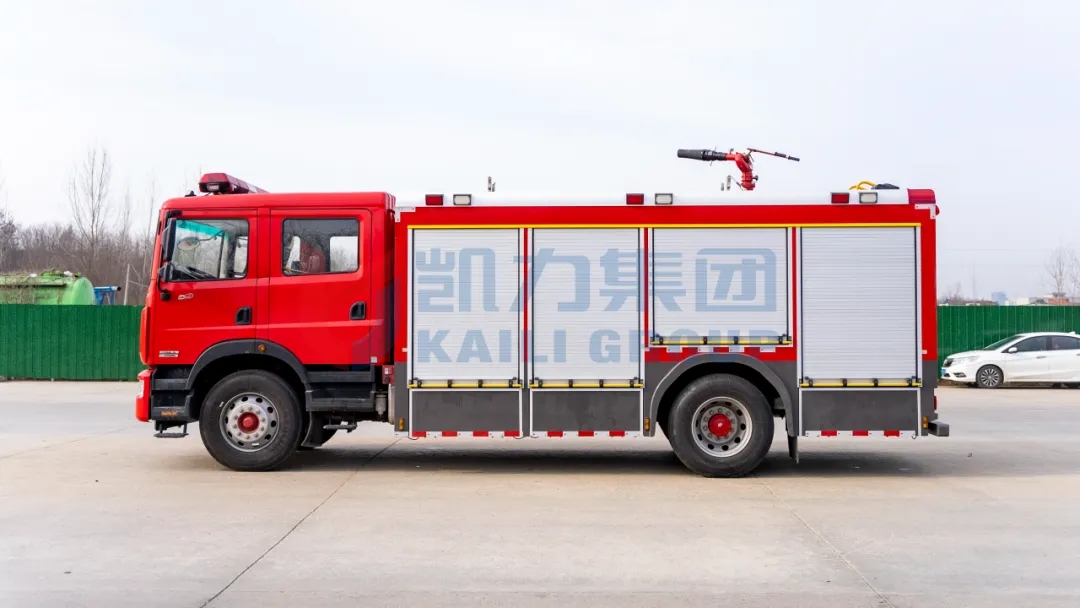

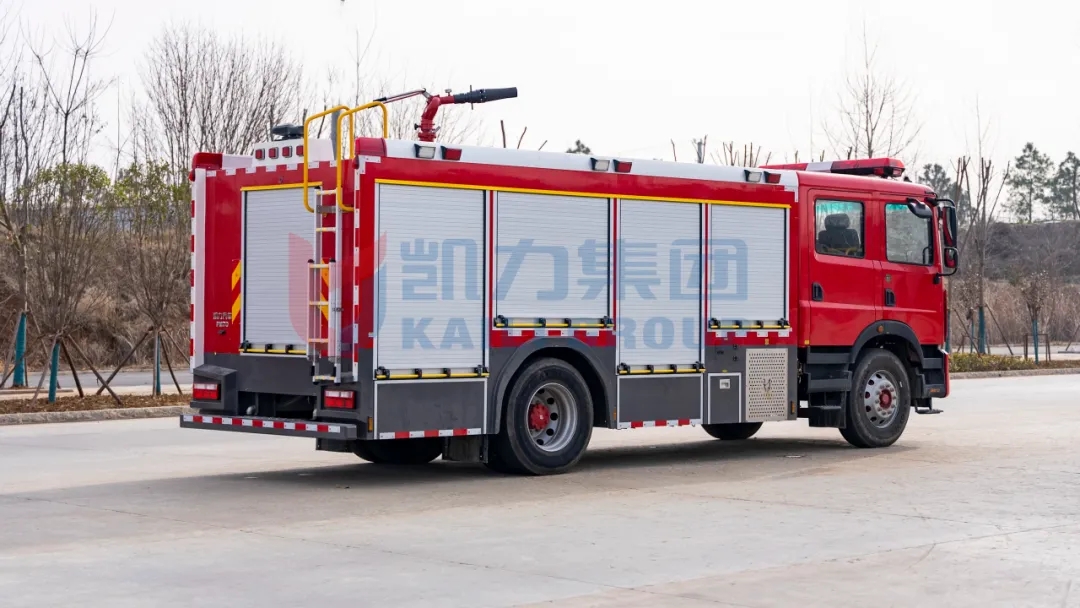

In The Tense Rescue Scene, The Efficiency Of Equipment Retrieval Directly Affects The Speed Of Combat Deployment. The Equipment Box Of The Vehicle Adopts A "high-quality Steel Frame+alumina Alloy Patterned Plate" Structure. The Front Equipment Box Is Equipped With 4 Aluminum Alloy Rolling Shutter Doors, And The Rear Pump Room Is Equipped With 1 Each To Avoid Interference With Command Communication.

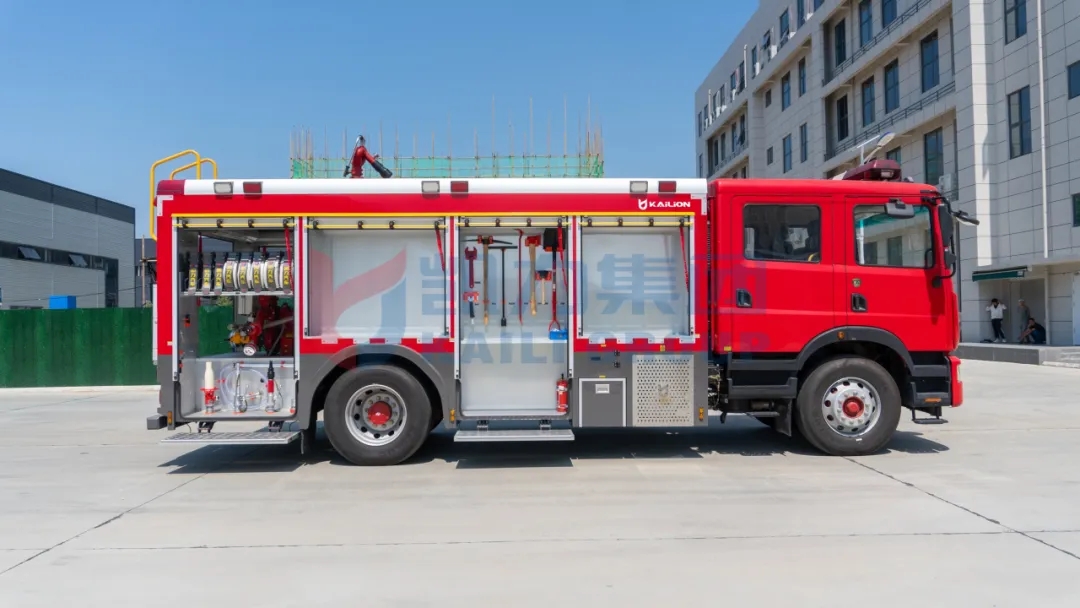

The Equipment Layout Strictly Follows The "practical Logic": Large Equipment Such As Suction Pipes And Water Hoses Are Placed In Convenient Positions And Can Be Accessed Within 2 Movements Of Standing On The Ground; High Frequency Equipment Such As Water Separator And Foam Gun Shall Be Placed In Different Zones According To "battle Formation", In Coordination With Ergonomic Brackets. The Tank Is Equipped With Two Liquid Level Indicators, Manual Drain Valves, And Other Devices To Allow Firefighters To Have Real-time Access To The Remaining Amount Of Fire Extinguishing Agent, Avoiding The Impact Of Information Lag On Decision-making.

From The "large Capacity" Of 7-way Liquid Carrying Capacity, To The "strong Output" Of 40L/s Pump Force, And Then To The "coordinated Action" Of 6-person Formation .....

Each Parameter Of Kailifeng Dongfeng D9 Foam Fire Truck Points To The Core Demand Of "large-scale Fire Rescue"

Kaili Automobile Group Takes Professional Equipment As Its Pen And Practical Needs As Its Ink

Continuously Writing The 'hardcore Chapter' Of Fire Rescue!
