【 Hot Selling Promotion 】 Kailifeng Dongfeng Tianlong Rear Double Bridge Upgraded 18.5 Square Sprink

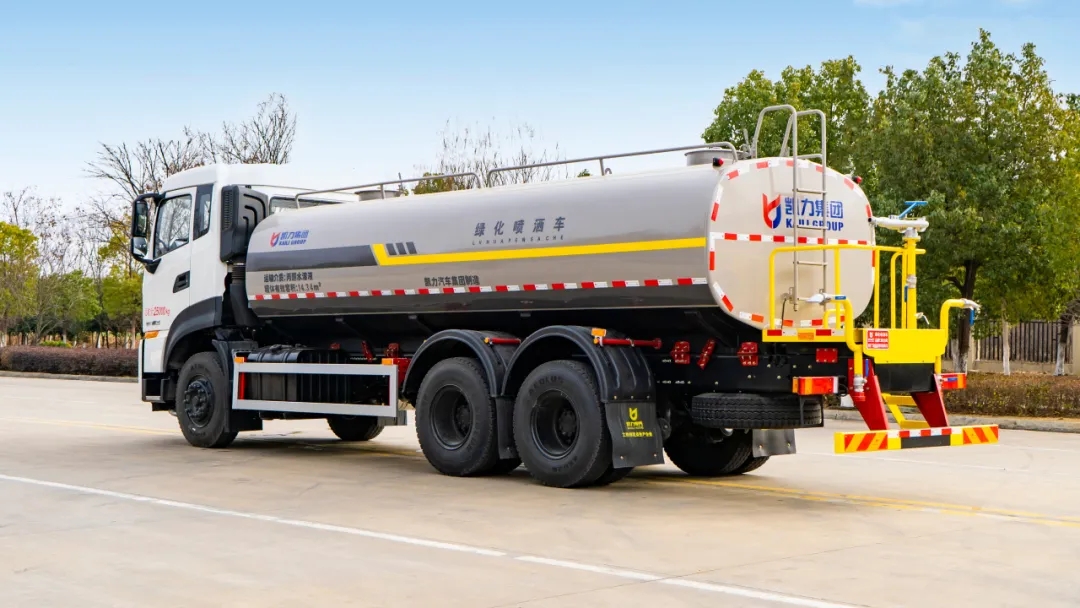

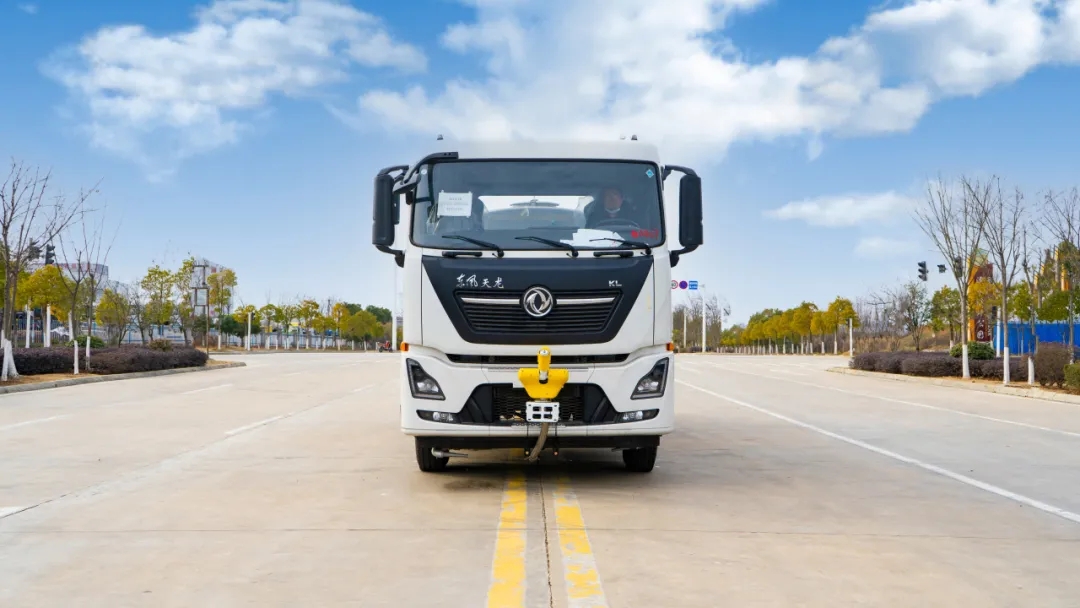

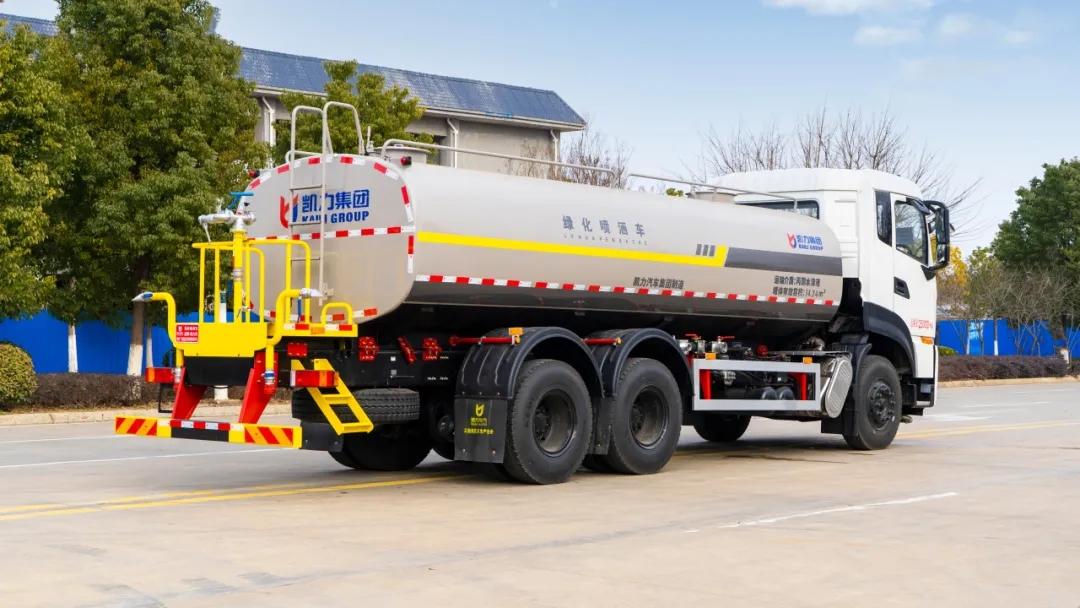

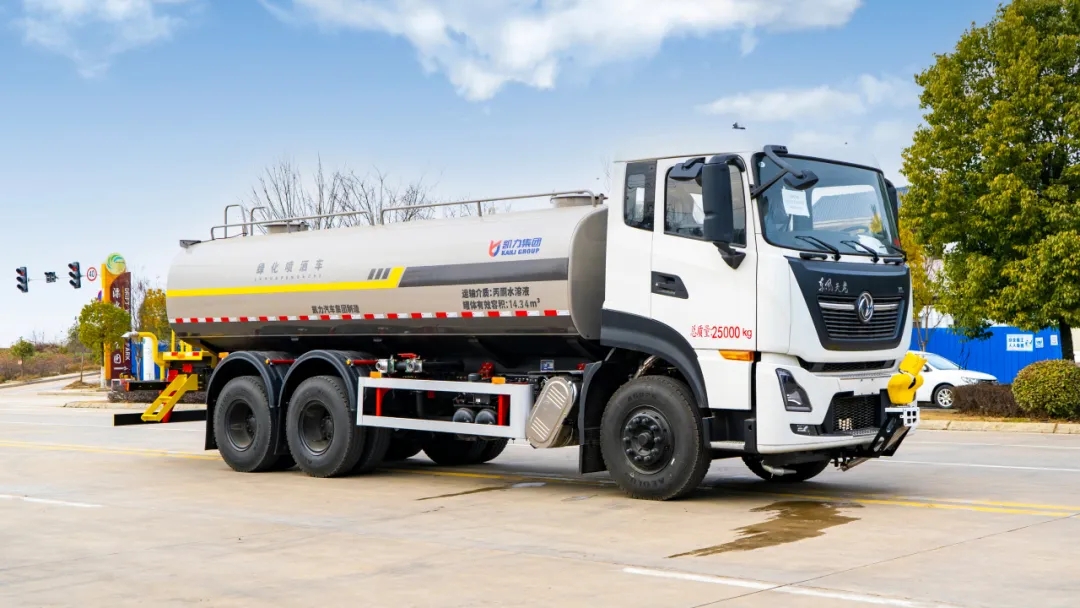

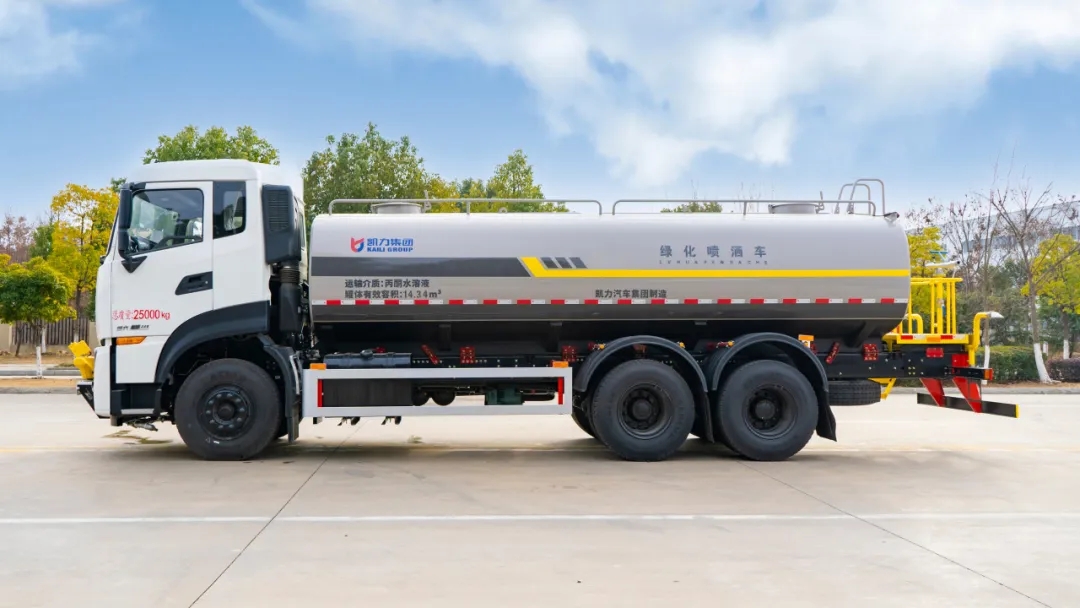

As The Flagship Model Of Kaili Group's Standardized Production With A Super Large Capacity, This Dongfeng Tianlong Rear Double Axle Sprinkler Truck (vehicle Model KLF5251GPSD6) Has Become The Core Choice For Over 70000 Users In Heavy Load Scenarios Such As Large-scale Engineering And Mining Areas, Thanks To Its Super Strong Rear Double Axle Bearing Capacity, 18.5 Cubic Meters Of Super Large Capacity, And 5mm Thick Tank Reinforcement Design. It Relies On The Precision Manufacturing Of The First Standardized Production Line In The Country, Redefining The Operating Standards Of Large Sprinkler Trucks With "large Capacity, Strong Power, And High Durability".

Core Configuration

Strong Power, Large Capacity, All-around Operation Without Any Shortcomings

Category Parameters/Configuration

Wheelbase 4350+1350mm

Power 213/257/220/250/231kW

Overall Dimensions Various Specifications

Curb Weight 11180kg

Box Volume 18.5m³

Forward Charge Sprinkler Width 15-30M, Can Cover 8 Lanes In Both Directions

Anti-aircraft Gun Dust Emission Of 30-35M, Adjustable By 360 Degree Rotation,

Special Sprinkler Pump High Power Water Pump, Vertical Suction Of 6M

Regular Functions Wan Qianchong, Rear Sprinkler, Side Sprinkler, S-shaped Sprinkler High Altitude Cannon, National Standard Fire Interface

Product Features

Standardized Chemical Casting Quality, Detailed Design Can Be Found In The Real Chapter

Rear Double Bridge Structure+thick Walled Tank Body

Adopting A Rear Double Axle Design, The Load-bearing Capacity Of The Vehicle Has Been Significantly Improved Compared To Single Axle Models, Making It Easy To Handle Full Load Conditions With A Large Volume Of 18.5 Cubic Meters. The Tank Body Is Made Of 5mm Thick High-quality Carbon Steel From Wugang, Which Is Formed In One Go Through Advanced Processes Such As Automatic Welding Of Spliced Panels And Automatic Welding Of Circular Shapes. It Has Stronger Deformation Resistance And Is Less Prone To Leakage In Bumpy Road Conditions Such As Mining Areas And Construction Sites, Significantly Improving Durability.

Large Capacity+efficient Water Supply

With A Super Large Effective Volume Of 18.5 Cubic Meters And A 89mm Large-diameter Inlet Pipeline, A Single Water Addition Can Meet The Continuous Operation Needs Of Large Construction Sites And Long-distance Main Roads, Greatly Reducing The Round-trip Water Addition Time. The Customized Version Of The High-power Water Pump Has A Larger Flow Rate, With Front Flushing Covering 8 Lanes In Both Directions And Rear Spraying Covering 4 Lanes In Both Directions. The Maximum Range Of The Anti-aircraft Gun Is 40 Meters, Suitable For Large-area And High-intensity Dust Reduction Maintenance.

Strengthen The Security Structure

Double Support+bolt Fixation: The Connection Between The Tank Body And The Main Beam Adopts A Double Support Design, Which, Combined With The Stable Structure Of The Rear Double Axle, Reduces The Impact Of Liquid In The Tank During Driving; The Tank Body And Auxiliary Beam Are Connected By Connecting Plate Bolts, With No Risk Of Displacement Under Bumpy Road Conditions And Full Safety.

Anti Freezing And Protection Upgrade: There Are Two Drainage Outlets At The Bottom Of The Tank, Which Can Completely Drain The Remaining Water In The Tank In Winter To Avoid Freezing And Cracking; The Side Protective Circular Tube Has Been Changed To A Bent Connection, Which Improves The Firmness Factor And Adapts To High-frequency Operations Of Large Vehicles.

Humanized Details

Convenient Inspection: The Manhole Is Designed To Be Moved Backwards, The Tank Guardrail Is Shortened, And A Ladder Is Added At The Entrance To Facilitate Personnel Entering The Tank For Inspection And Maintenance; The Urban Greening Water Crane Nozzle Can Directly Inject Water Into The Tank, With Flexible And Efficient Operation.

Anti Slip Safety: The Rear Platform Is Connected By A Connecting Plate, And The Platform Surface Is Designed With Punched Holes To Enhance Load-bearing Capacity And Prevent Slip And Deformation; Thickened And Enlarged Frame Style Foot Pedals Ensure Safe And Convenient Boarding And Alighting.

Wave Resistant And Stable Driving: The Tank Water Tank Is Divided Into 2-3 Compartments, With A Through Hole At The Lower End Of The Partition And A Wave Resistant Plate Inside, Which Greatly Reduces The Impact Of The Liquid In The Tank During Driving And Makes Driving Smoother.

Sealed And Durable: Acrylic Organic Glass Hollow Bright Tube Is Beautiful And Practical; The Flange Seal Adopts O-ring, Which Has Better Sealing Performance And Longer Service Life.

Product Advantages

Four Core Highlights, The Trusted Choice Of Over 700000 Users

01. The Rear Double Bridge Has A Large Capacity And Is The King Of Heavy-duty Efficiency

With A Capacity Of 18.5 Cubic Meters And Rear Double Axle Support, It Has A Larger Single Operation Volume Than Conventional Vehicles, Making It Particularly Suitable For Large-scale Mining Areas, Construction Sites, And Other Scenarios That Require High-frequency Dust Reduction, Reducing The Number Of Water Refills.

02. 5MM Thick Tank+strong Power, Durability Fully Extended

5mm Thick Wugang Carbon Steel Tank Body+high-power Engine, With Stronger Anti Manufacturing Ability Than 4mm Thick Tank Body Models, Sufficient Power Reserve, And No "chain Drop" During Operation In Complex Road Conditions.

03. The Structure Is Sturdy, Safe, Reliable, And Requires Minimal Maintenance

Multiple Safety Structures Such As Double Support Connection, Bolt Fixed Tank Body, And Anti Wave Plate Design Reduce Damage Caused By Driving Bumps; High Power Water Pumps And Large Diameter Pipelines Are Less Prone To Blockage, Reducing The Occurrence Of Failures And Making Long-term Use More Worry Free.

04. With Comprehensive Functions And Worry Free After-sales Service, You Can Use It With Peace Of Mind

Equipped With Functions Such As Forward Thrust, Rear Spray, Side Spray, Anti-aircraft Gun, And Fire Interface, It Meets Diverse Operational Needs; Ranked Among The Top Three In Terms Of National Sales, Coupled With The 24/7 After-sales Service Of Kaili, The Entire Journey Of Driving Is Worry Free.

05. Standardized Flagship Quality

Relying On The First Standardized Production Line In The Country, With 14 Processes Without Welding Throughout, It Can Be Offline In 90 Minutes, And Its Quality Has Been Verified By Over 70000 Users. It Is The Flagship Representative Of "NO.1 In The Sprinkler Industry".

Applicable Scenarios

Full Scene Coverage, Good Helper For Municipal Sanitation

This Kailifeng Dongfeng Tianlong Rear Double Bridge Sprinkler Truck Is Adaptable To A Wide Range Of Scenarios And Can Be Regarded As The Versatile Main Force For Large-scale Operation Scenarios:

Large Mining Area/construction Site Dust Reduction: 18.5 Cubic Meters Of Large Volume+rear Double Bridge Anti Vibration Design, Suitable For The Large-scale And High-frequency Dust Reduction Needs Of Mining Areas And Large Construction Sites. The 40 Meter Anti-aircraft Gun Can Effectively Suppress Dust.

Urban Main Road Maintenance: Two-way 8-lane Front Wash Coverage+long Endurance, Easily Completing Long-distance Cleaning And Dust Reduction Of Urban Expressways And Main Roads, Reducing Water And Round-trip Time.

Large Scale Engineering Maintenance: For Large-scale Projects Such As Highway Expansion And New City Construction, It Can Simultaneously Complete Road Surface Plastering, Greening Irrigation, Emergency Water Supply, And Improve Efficiency With Multiple Uses Of One Vehicle.

Emergency Firefighting Assistance: With A Super Large Capacity Water Storage And A National Standard Firefighting Interface, It Can Serve As An Emergency Firefighting Water Supply Equipment For Large Factories And Industrial Parks, Playing A Role As A Reserve Water Source In Critical Moments.

Choosing This Sprinkler Truck Means Choosing A Flagship Level Equipment Specially Designed For Heavy Loads And Large Scenes. Kaili Uses A Hardcore Configuration Of "rear Double Bridge Strong Load-bearing+5mm Thick Tank+18.5 Square Meter Large Volume" To Make Large-scale Sanitation Operations More Efficient, Durable, And Worry Free!
