【 Hot Selling Promotion 】 Kailifeng Dongfeng Huashen T5 Rear Double Bridge Upgraded Edition 22 Squar

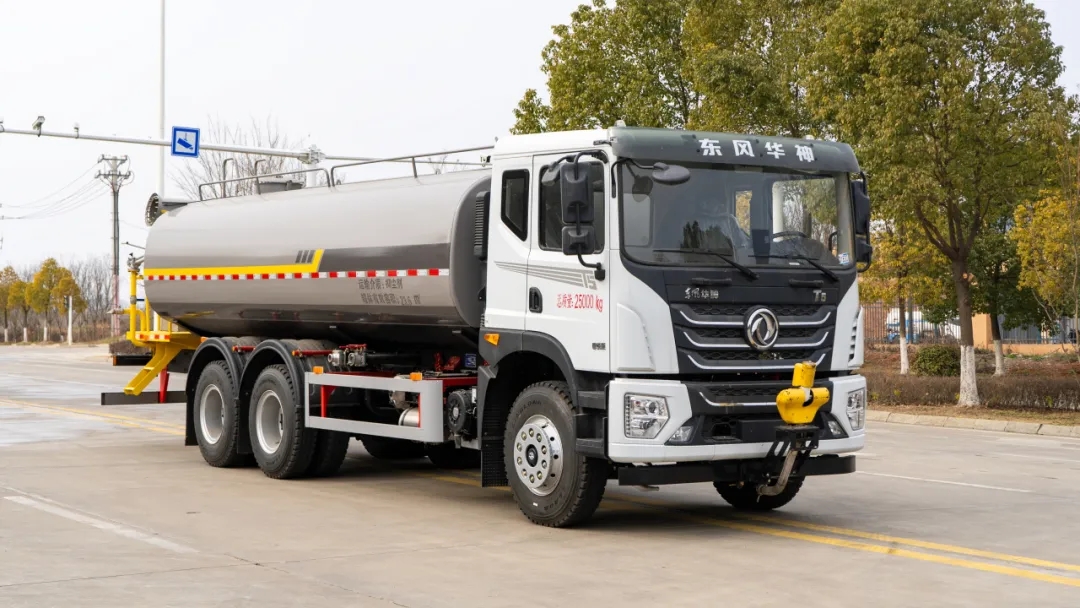

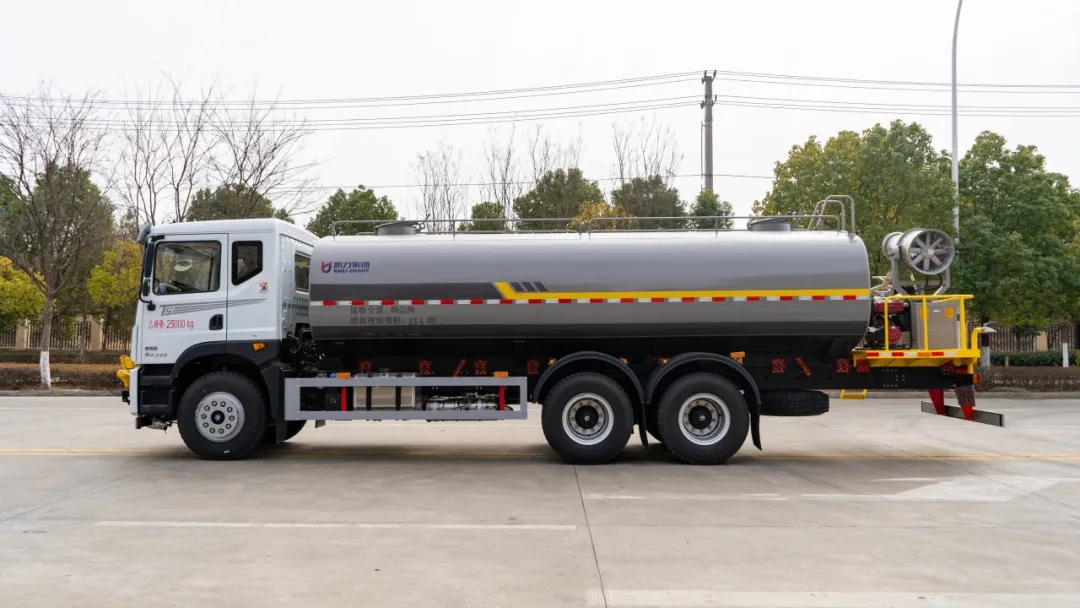

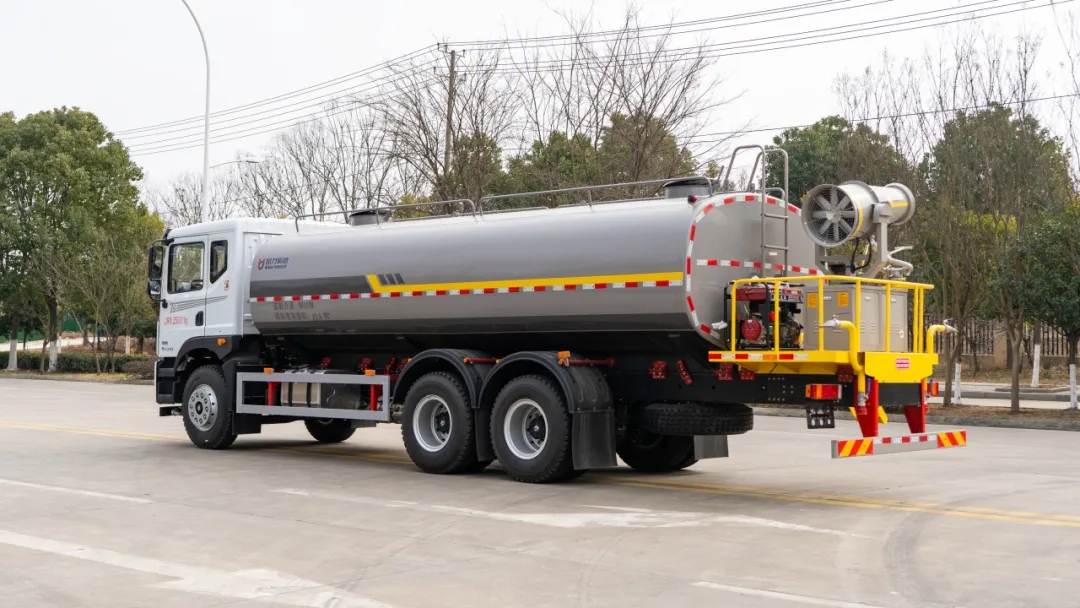

As A Benchmark Model For Standardized Production Of Super Large Capacity Vehicles By Kaili Group, This Kaili Feng Dongfeng Huashen T5 Rear Double Axle Sprinkler Truck (vehicle Model KLF5250GPSE6) Has Become The Core Choice For Over 70000 Users In Heavy Load Scenarios Such As Large Mining Areas, Urban Main Roads, And Key Projects, Thanks To Its 22 Cubic Meter Super Loading Capacity, Super Strong Rear Double Axle Bearing Capacity, And 5mm Thick Tank Reinforcement Design. It Relies On The Precision Manufacturing Of The First Standardized Production Line In The Country, Redefining The Operating Limits Of Large Sprinkler Trucks With "large Capacity, Strong Power, And High Durability".

Core Configuration

Rear Double Bridge+22 Square Super Large Volume, Exclusive Adaptation For Heavy Load Scenarios

Category Parameters/Configuration

Wheelbase 4350+1350mm

Power 180/199/169/191kW

Overall Dimensions Various Specifications

Curb Weight 10855/11105kg

Box Volume 22m³

Forward Charge Sprinkler Width 15-30M, Covering 8 Lanes In Both Directions

Anti-aircraft Gun Dust Emission Of 30-35M, Adjustable By 360 Degree Rotation

Special Sprinkler Pump High Power Water Pump, Vertical Suction Of 6M

Regular Functions Wan Qianchong, Rear Sprinkler, Side Sprinkler, S-shaped Sprinkler High Altitude Cannon, National Standard Fire Interface

Product Features

Super Large Volume Reinforced Design, More Reliable For Heavy-duty Operations

Maximize The Efficiency Of A Single Assignment

The Effective Volume Of 22 Cubic Meters Is Among The Best In Its Class, With A Single Loading Capacity That Is Super Large. Coupled With The Super Strong Load-bearing Structure Of The Rear Double Bridge, It Can Meet The Long-distance Continuous Operation Needs Of Large Mining Areas And Urban Main Roads, Greatly Reducing The Frequency Of Round-trip Water Filling And Soaring Daily Operation Efficiency. The 89mm Large Diameter Inlet Pipe, Combined With A High-power Water Pump, Can Add Water At A Faster Rate Than Its Peers, Further Reducing Non Operational Time.

Heavy Loads Are More Durable

The Tank Body Is Made Of 5mm Thick High-quality Carbon Steel From Wugang (with Improved Deformation Resistance Compared To Conventional 4mm Thick Models), And Advanced Processes Such As Automatic Welding Of Spliced Panels, Automatic Welding Of Circular Shapes, And One-time Packaging Of The Tank Body Are Used To Ensure High Sealing And Zero Leakage Of The 22 Square Meter Large Volume Tank Body. The Connection Between The Tank Body And The Main Beam Adopts A Double Support Design, Which, Combined With The Stable Structure Of The Rear Double Bridge, Greatly Reduces The Impact Of Liquid In The Tank During Driving; The Tank Body And Auxiliary Beam Are Rigidly Connected By Connecting Plate Bolts, With No Risk Of Displacement Under Bumpy Road Conditions, Ensuring Full Safety For Heavy-duty Operations.

Detail Adaptation For Large-scale Scenes

Comprehensive Anti Freezing Protection: There Are Two Drainage Outlets At The Bottom Of The Tank, Which Can Completely Drain The Remaining Water In The Tank Of 22 Cubic Meters In Winter, Avoiding Damage To The Super Large Volume Tank Due To Frost Cracking, And Suitable For Operation In Low-temperature Areas In The North.

Protection Enhancement: The Side Protection Circular Tube Connection Has Been Changed To A Bent Piece Connection, Which Has A Stronger Firmness Coefficient Than Traditional Designs And Is Suitable For The Collision Needs Of High-frequency Operations Of Large Vehicles; The Rear Platform Is A Perforated Anti Slip Structure With A Load-bearing Capacity Of 300kg, Making It Safer For Staff To Inspect The Upper And Lower Tanks.

Wave Resistant And Stable Driving Design: The Tank Water Tank Is Divided Into 2-3 Compartments, With A Through Hole At The Lower End Of The Partition And A Built-in Wave Resistant Plate, Greatly Reducing The Impact Of Liquids During Driving And Ensuring High-speed Stability.

Product Advantages

Choose Its Four Core Competencies For Large-scale Scenarios

01 Super Large Capacity Efficiency King

A Single Operation With A Loading Capacity Of 22 Cubic Meters Covers A Larger Area, Making It Particularly Suitable For Long-distance And Large-scale Dust Reduction Scenarios Such As Urban Main Roads And Large Mining Areas. It Reduces The Number Of Water Refills And Leads The Industry In Terms Of Operational Efficiency.

02 Rear Double Bridge+thick Tank Durability

The Rear Double Axle Supports A 5mm Thick Tank Body, With Stronger Resistance To Deformation And Bumps Than Single Axle Models. Under Heavy Load Operation, The Tank Body Leakage Rate Is Almost Zero, And The Service Life Is Longer.

03 Standardized Flagship Quality

Relying On The First Standardized Production Line In The Country, With 14 Processes Without Welding, It Can Be Offline In 90 Minutes. The Tank Body Is Made Of 5mm Stainless Steel Carbon Steel+tank Body Electrophoresis Process+structural Component Electrostatic Powder Spraying Process, Ensuring Ten Years Of Worry Free Anti-corrosion And Rust Prevention, And Reducing The Maintenance Cost Of Large Equipment In The Later Stage.

04 Fully Functional And Fast After-sales Service

Equipped With A Full Set Of Functions Including Front Flushing, Rear Spraying, And Anti-aircraft Gun, It Can Also Be Equipped With An Electronic Gun And A High-level Showerhead; The 7x24 Hour After-sales Team Is Always On Standby, And Dedicated Car Users Can Also Enjoy Flagship Level After-sales Service.

Applicable Scenarios

The 'versatile Main Force' For Heavy-duty Large-scale Scenarios

This Kailifeng Dongfeng Huashen T5 Rear Double Axle Sprinkler Truck Is Suitable For A Wide Range Of Scenarios And Is An All-around Mainstay For Heavy-duty And Large-scale Scenarios

Dust Reduction In Large Mining Areas/construction Sites: With A 22 Cubic Meter Ultra Large Volume And A 40 Meter Anti-aircraft Gun, It Can Cover The Entire Area Of The Mining Area And Large Construction Sites For High-frequency Dust Reduction, Effectively Suppressing Dust And Reducing Dust Pollution.

Urban Main Road Maintenance: Two-way 8-lane Front Wash Coverage+long Endurance, Easily Completing Long-distance Cleaning And Dust Reduction Of Urban Expressways And Main Roads, Covering 50 Kilometers Of Road Sections In A Single Day.

Large Scale Engineering Support: Adapted To Large-scale Projects Such As Highway Expansion And New City Construction, Synchronously Completing Road Surface Plastering, Greening Irrigation, Emergency Water Supply, And Improving Project Efficiency With Multiple Uses Of One Vehicle.

Emergency Fire Reserve: 22 Cubic Meters Of Super Large Water Storage Capacity+national Standard Fire Interface, Can Be Used As Emergency Fire Water Supply Equipment For Large Factory Areas And Industrial Parks, Providing Sufficient Water Source Support In Critical Moments.

Choosing This Sprinkler Truck Means Choosing A Flagship Equipment Specially Designed For Ultra Large And Heavy-duty Scenarios. Kaili Uses A Hardcore Configuration Of "22 Square Super Large Volume+rear Double Bridge Strong Bearing+5MM Thick Tank Body" To Transform Large-scale Sanitation Operations From "frequent Water Addition" To "efficient Coverage", Easily Meeting The Dust Reduction And Maintenance Needs Of Ultra Large Scenes!
